土工布测厚仪

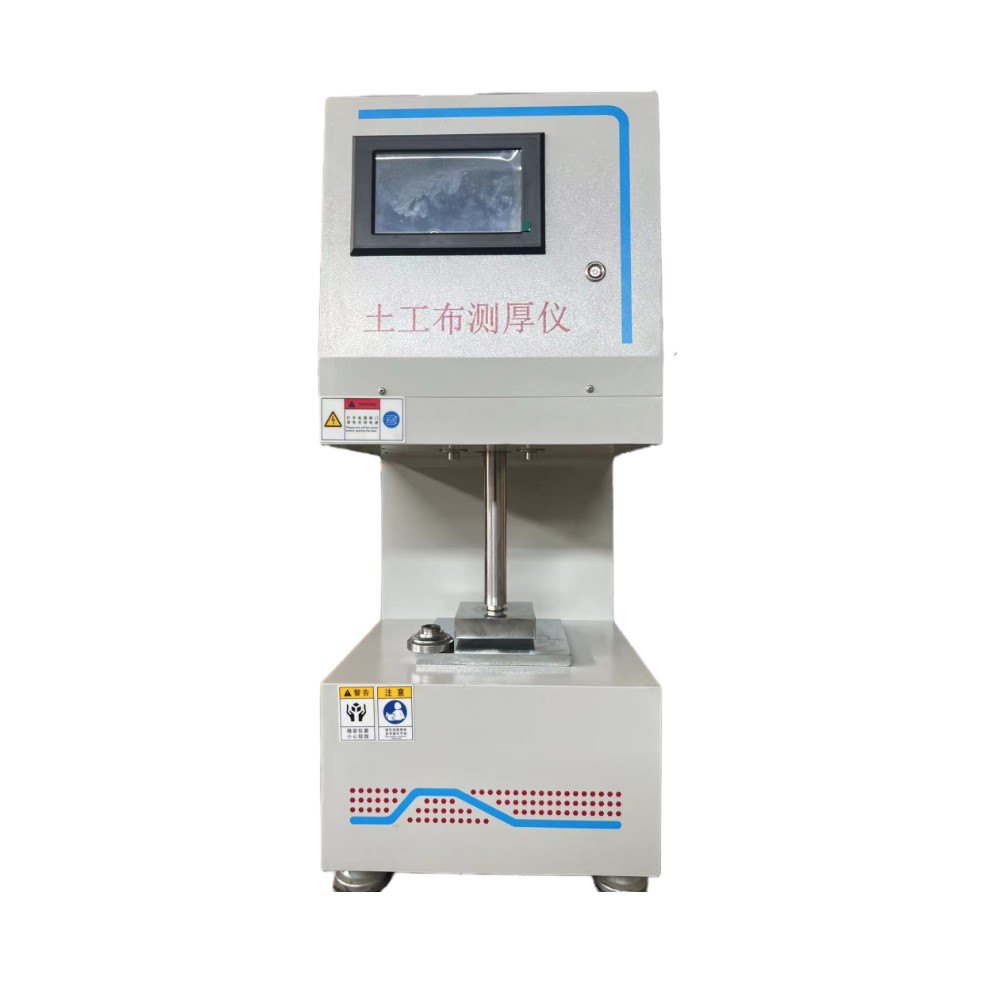

TH-22 new standard geotextile thickness gauge

1、 Introduction

This instrument adopts the principle of automatic control to achieve thickness testing of samples under pressure conditions of 2KPa, 20kPa, and 200KPa. Its instrument has a simple structure, beautiful and elegant appearance, and is easy to operate, making it the preferred instrument for producing and verifying the thickness of geotextile and geomembrane.

This instrument is suitable for testing standards such as GB/T13761 "Method for measuring the thickness of geotextiles", T1112-2006 "Thickness measurement", and ISO 9863:1900 "Method for measuring the thickness of geotextiles under fixed pressure". It is an essential instrument for testing the thickness of various geotextiles and geomembranes.

2、 Main technical requirements

Working voltage: AC220V

Presser foot area: 25cm ²、 100cm ²

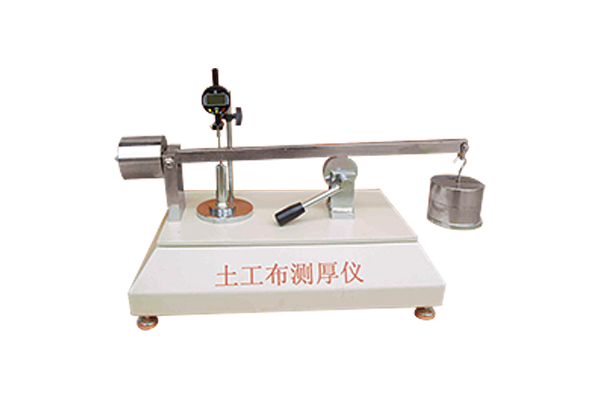

TH-060 geotextile thickness gauge

1、 Introduction

This instrument adopts the lever principle and amplifies the length of the pressure arm. Under limited space and weight mass conditions, the thickness of the samples was tested under pressure conditions of 2KPa and 200KPa. Its instrument has a simple structure, beautiful and elegant appearance, and is easy to operate, making it the preferred instrument for producing and verifying the thickness of geotextile and geomembrane.

This instrument is suitable for testing standards such as GB/T13761 "Method for measuring the thickness of geotextiles", T1112-2006 "Thickness measurement", and ISO 9863:1900 "Method for measuring the thickness of geotextiles under fixed pressure". It is an essential instrument for measuring the thickness of various geotextiles and geomembranes.

2、 Main technical requirements

2.1 Presser foot area: 25cm2 (circular diameter: ¥ 56.42mm)

2.2 Presser foot weight: 5N (2KPa ± 0.01kpa Presser foot self weight: 510.2g four pieces)

2.3 Secondary pressure: 20kpa ± 0.1kpa (pressure foot pressure rod 1 with hook 2:5098g)

2.4 Triple pressure: 200KPa ± 1kpa (pressure foot pressure rod 1+hook 2+weight 3:50985g)

2.5 dial gauge: 0-12.7mm, minimum graduation value 0.01mm

2.6 Stop watch: minimum division value 0.1S

2.7 Instrument appearance: 730 × three hundred and twenty × 350mm (L × W × H)

2.8 Instrument weight: 25 kg
