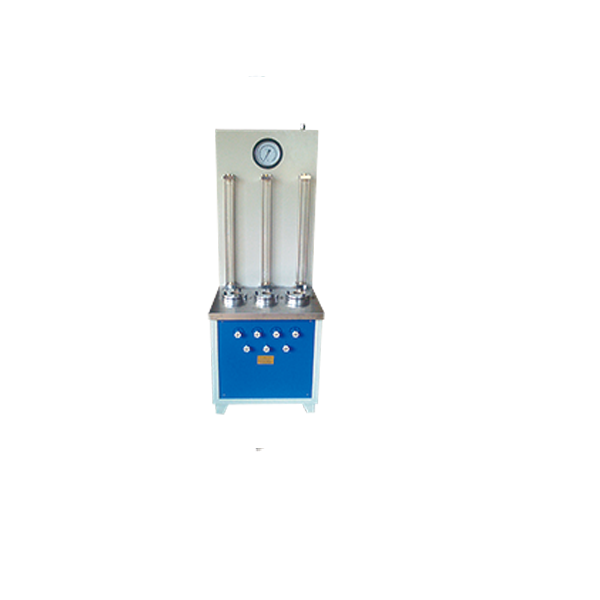

TH-080S型土工布合成材料渗透系数测定仪

TH-080S Geotextile composite material permeability coefficient tester

Overview:

This instrument is developed and designed according to the national standards for anti-seepage performance and permeability coefficient of geosynthetic materials, such as SL/T235-1999, JTGE50-2006, and GB/T19979.2-2006. Suitable for measuring the permeability coefficient of various geotechnical materials, with stable performance and convenient practicality.

Technical parameters:

Sample size φ 200mm, effective cross-sectional area ≥ 200 square centimeters

Automatic water supply by pressure pump, voltage 380V

Accuracy 0.5%

Perforated plate through hole φ 3mm

Diameter of water collector φ 200mm

Maximum pressure 2.5Mpa

Pressure adjustment range: 0-2.5MPa
