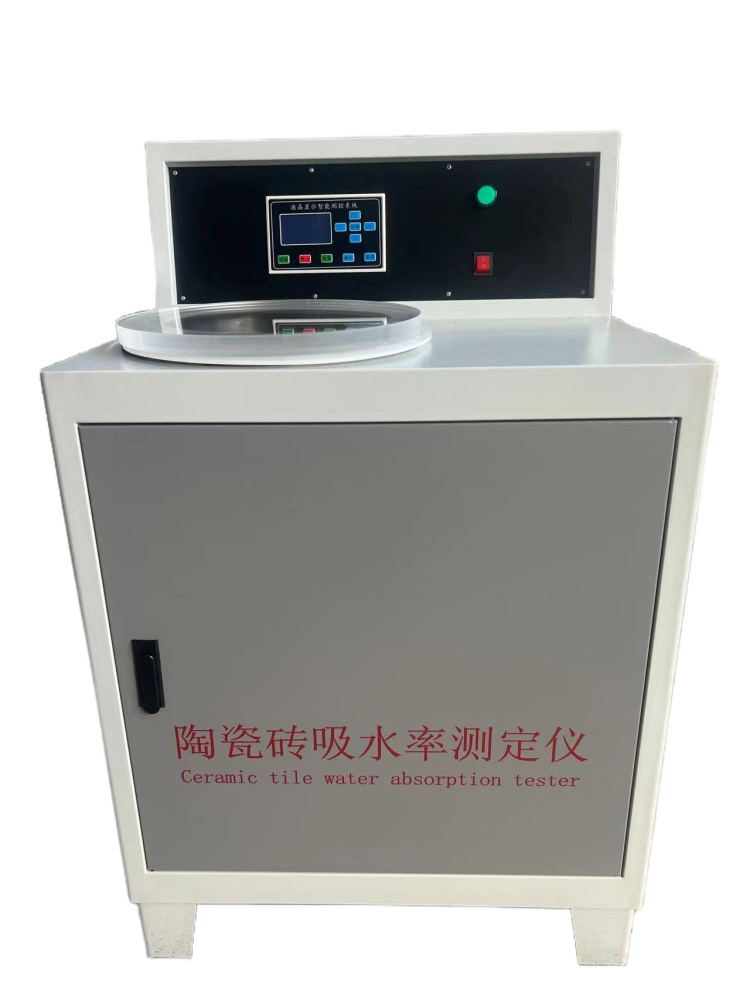

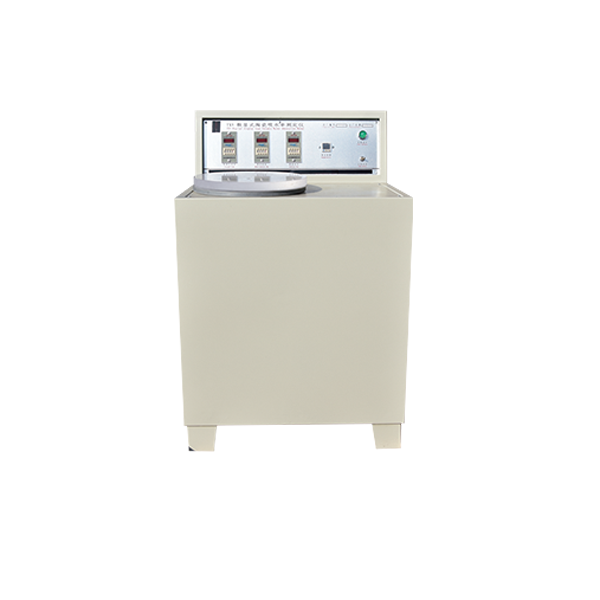

TXY type - ceramic water absorption tester　

Product Introduction:

This instrument is an instrument that uses vacuum method to measure the water absorption of daily ceramics, building and sanitary ceramics, and electrical ceramics. Meet the national standard of the People's Republic of China GB/T3810.3-2016/IS010545-3:1995 "Determination of Water Absorption, Apparent Porosity, Apparent Relative Density and Capacity", and also meet the measurement conditions of GB/T3299-2011 "Method for Determination of Water Absorption of Household Ceramics". This instrument can also be used to measure the water absorption of bricks, tiles, cement products, etc.

Technical parameters:

▲ Vacuum pressure control accuracy: -0.1MPa± 10KPa (vacuum negative pressure drops by 10Kpa for every 750 meters increase in altitude)

▲ Vacuum degree control accuracy: 10Kpa± 1Kpa (when the local air pressure is 0.1Kpa, the corresponding vacuum negative pressure is - (100-10)=-90Kpa

▲ Vacuum time: 0-999 minutes continuously adjustable

▲ Soaking time: 0-999 minutes continuously adjustable

▲ Water inlet time: 0-999 minutes continuously adjustable

▲ Power supply: -220V180W

▲ Sample specification: Each block weighs 50g-100g

▲ Number of samples: 5-10 pieces per test

▲ Weighing accuracy: 0.1g

   TXY型-陶瓷吸水率测定仪

   产品介绍：

　　该仪器系采用真空法对日用陶瓷、建筑卫生陶瓷、电瓷的吸水率进行测定的仪器。满足中华人民共和国国家标准GB/T3810.3-2016/IS010545-3:1995《吸水率，显气孔率，表观相对密度和容量的测定》，也满足GB/T3299-2011《日用陶瓷吸水率测定方法》的测定条件。该仪器也可用于测定砖瓦、水泥制品等的吸水率。

　　技术参数：

　　▲真空压力控制精度：-0.1MPa±10KPa(海拔高度每增高750米，真空负压降10Kpa)

　　▲真空度控制精度：10Kpa±1Kpa(当地气压为0.1Kpa时，对应真空负压为-(100-10)=-90Kpa

　　▲真空时间：0-999分钟连续可调

　　▲浸泡时间：0-999分钟连续可调

　　▲进水时间：0-999分钟连续可调

　　▲电 源：-220V180W

　　▲试样规格： 每块重50g-100g

　　▲试样数量：一次试验5-10块

　　▲称重精度：0.1g
