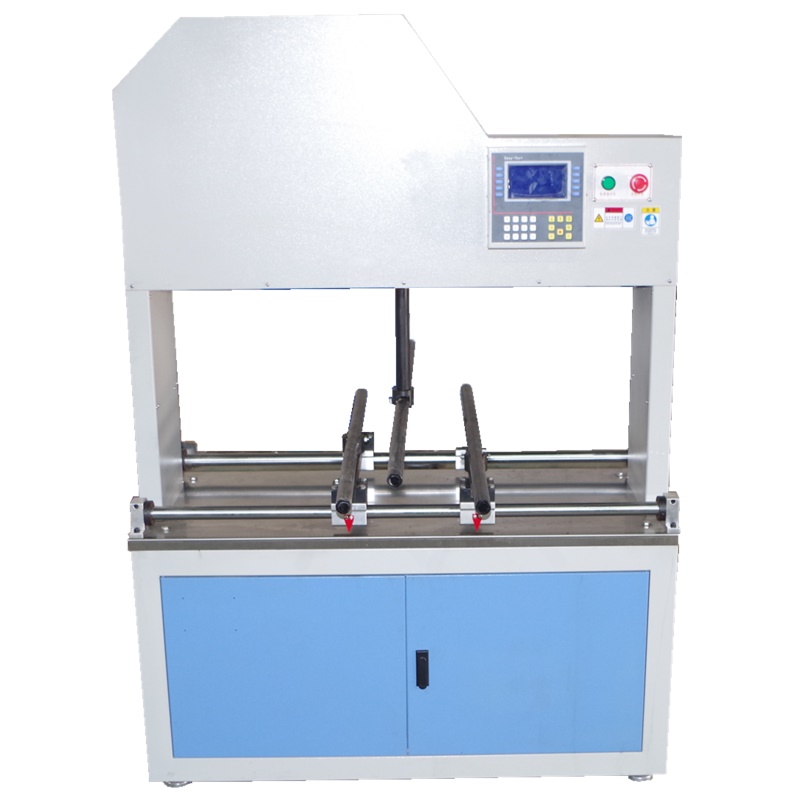

LHKZ-10 Ceramic tile bending test machine

Usage Overview:

This testing machine is used for bending strength testing of general ceramic tiles and large-sized high-strength ceramic tiles (such as floor tiles), as well as for bending strength testing of marble boards, gypsum boards, etc.

Comply with GB/T 3810.4&flash; The test methods for ceramic tiles in 2006, Part 4 "Determination of fracture transverse number and failure strength", and the requirements of international standards such as ISO10545-4:1994.

Technical parameters:

▲ Maximum test force: 10000N

▲ Resolution: 1N;

▲ Relative error of indication:± 1%;

▲ Maximum sample size: 800× 800mm;

▲ Working stroke: 100mm

　用途概述：

　　本试验机用于一般陶瓷砖瓦和大规格高强度陶瓷砖(如地砖等)弯曲强度试验，也可用于大理石板﹑石膏板等的弯曲度试验。

　　符合GB/T 3810.4—2006陶瓷砖试验方法第四部分《断裂横数和破坏强度的测定》﹑国际标准ISO10545-4:1994等标准的要求。

　　技术参数：

　　▲ 最大试验力:10000N

　　▲ 分辨率:1N;

　　▲ 示值相对误差: ±1%;

　　▲ 试样最大尺寸:800×800mm;

　　▲ 工作行程:100mm
