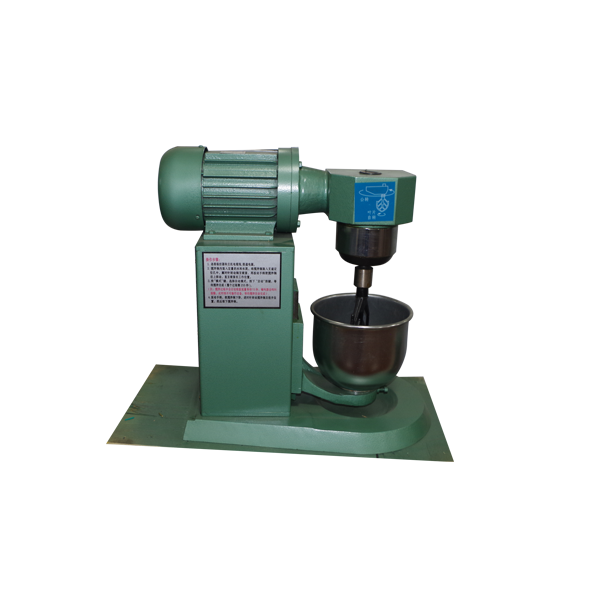

NJ-160B型水泥净浆搅拌机

NJ-160B Cement Slurry Mixer

1、 Purpose and Scope of Application

This machine is one of the specialized equipment that implements the provisions of GB1346-89. It is a new type of double rotation and double speed slurry mixer manufactured according to the main technical parameters of GB3350.8. It mixes cement and water according to the standard regulations to form a uniform test slurry, which is used for measuring the water content for cement standard consistency, setting time, and making stability test blocks. It is a cement production plant and construction unit, Necessary equipment for laboratories in universities and research institutions.

2、 Main specifications and technical parameters

1. Number of revolutions and time of mixing blades

2. Mixing blade width: 111mm

3. Voltage and power: 380V/370W

4. Inner diameter of mixing pot × Depth: 160 × 139mm

5. Mixing pot wall thickness: 1mm Mixing pot capacity: 2.5L

6. Working space between mixing blade and mixing pot: 2 ± 1mm

7. Overall dimensions: 472 × two hundred and eighty × 458mm

8. Packaging size 600 × four hundred and fifty × 620mm
