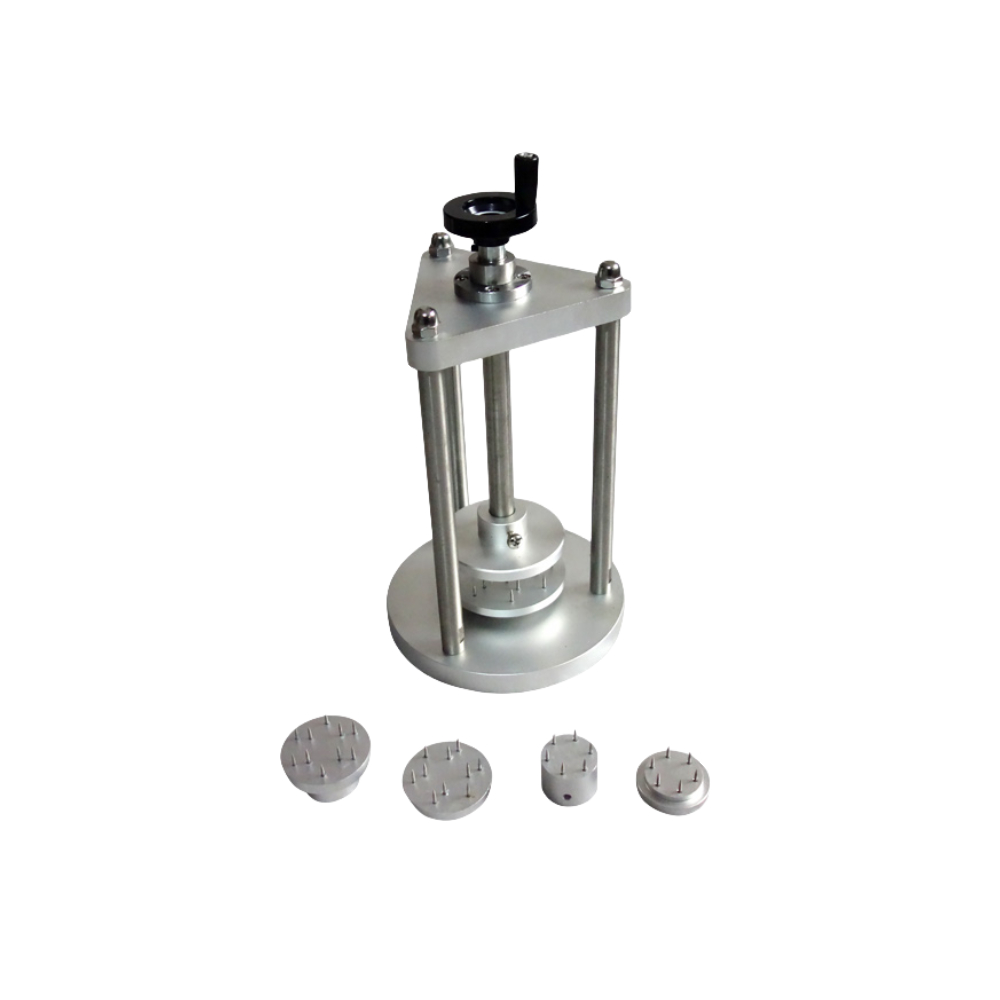

QT-1 切土盘

Product Introduction

When conducting unconfined compressive strength tests and triaxial tests, it is necessary to use this soil cutting disc to cut the sample into the required diameter. The bottom of the nail plate under the soil cutting plate is equipped with steel bars to make it rotate flexibly. Complies with the requirements of GB/T50123-2019 Soil Test Methods Standard and JTG3430-2020 Highway Soil Test Code.

Product parameters

Diameter of soil sample that can be cut: φ 39.1 φ 61.8 φ 101mm

External dimensions: 200mm × 200mm × 390mm

Net weight: 6.6KG
