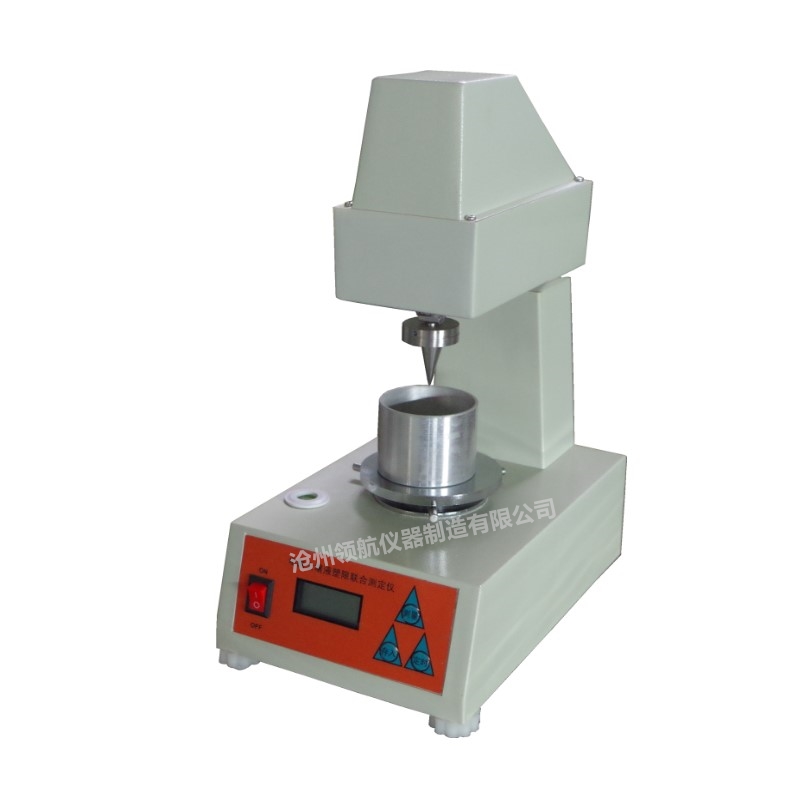

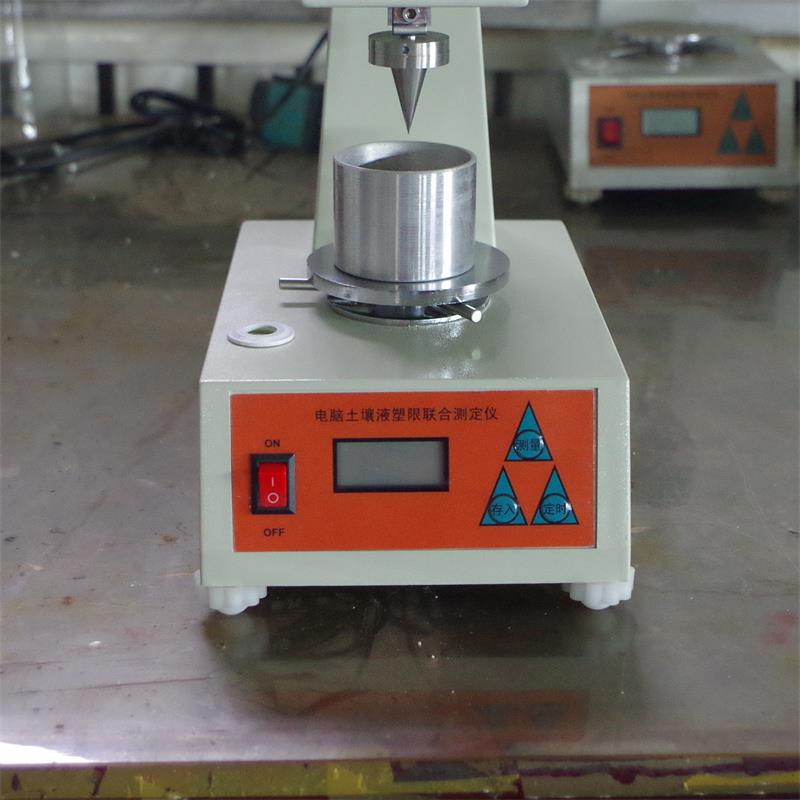

TYS-3 Soil liquid plastic limit joint tester

电脑土壤液塑限联合测定仪

Purpose

This instrument can be used to measure the liquid limit, plastic limit, plasticity index, natural consistency and other indicators of soil. The above soil indicators are obtained by measuring the depth at which a standard cone with an additional weight vertically penetrates the sample within a specified time.

Main technical indicators of the instrument:

1. Minimum graduation: 0.01mm

2. Range: ≥ 25mm, error:<0.05mm

3. Cone and connecting rod weight: 760.1g

4. Weight: 24 ± 0.1g; Can form a 100g test

5. Cone angle: 30 0.2

6. Four position LCD display

7. Power supply: 220v/50Hz

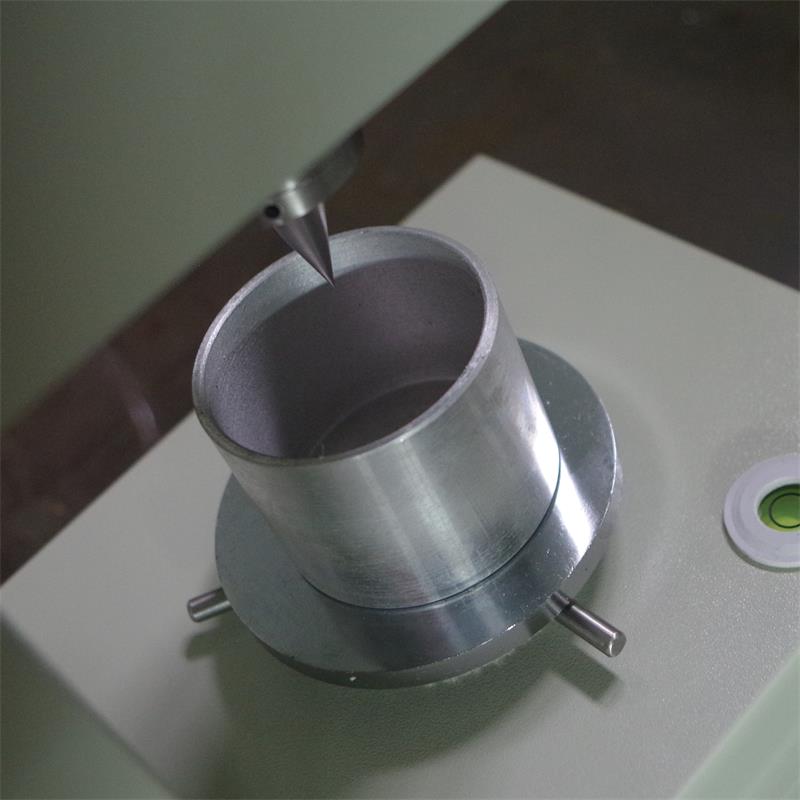

8. Sample cup: metal, flat bottomed cylindrical, with an inner diameter of 5040mm

9. The instrument work platform is equipped with a horizontal adjustment mechanism.
