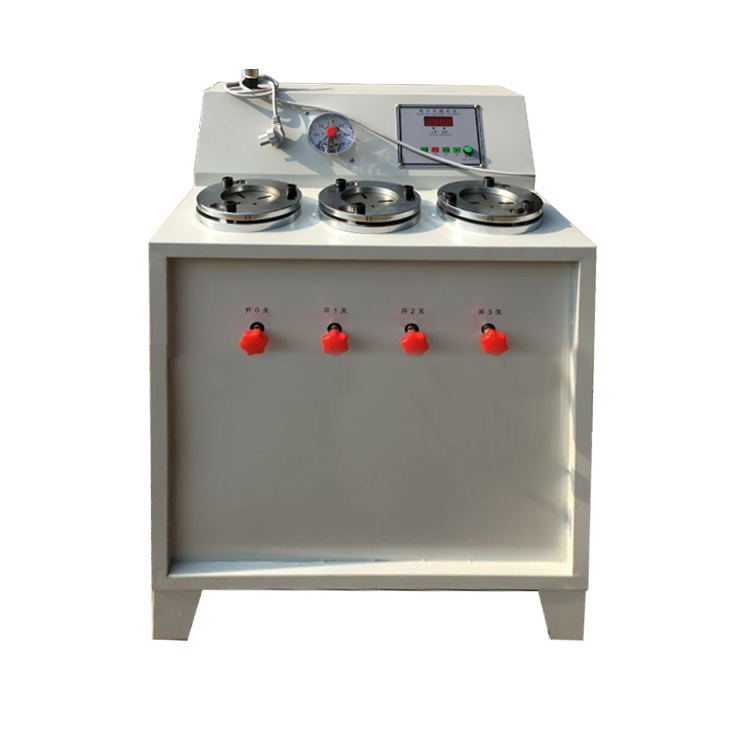

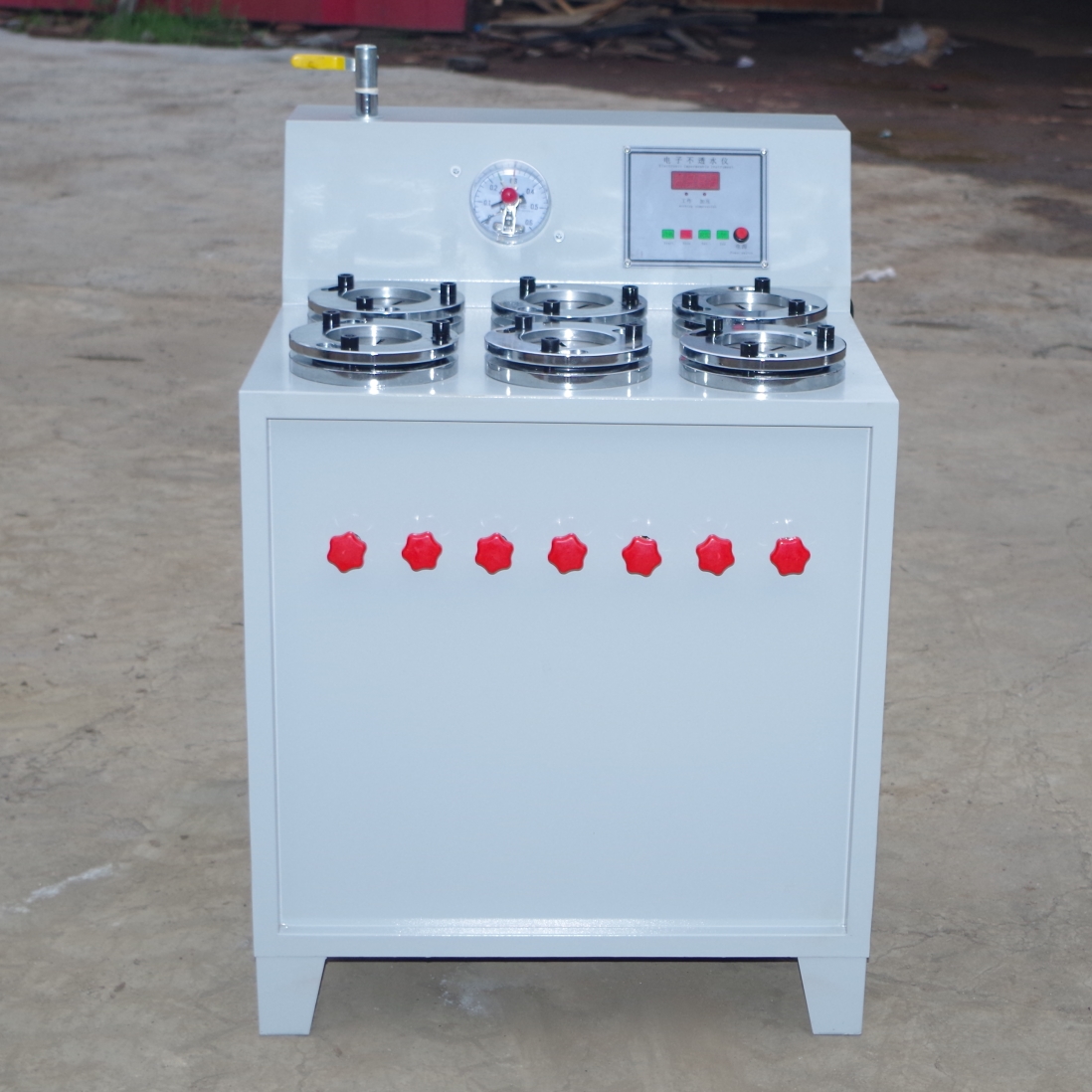

DTS-4 Electric waterproof membrane impermeability tester　　

1、 Overview

    The new electric waterproof membrane is an instrument used to detect the impermeability of petroleum asphalt paper based felt and elastic full asphalt waterproof membrane. It can meet the test requirements specified in GB328.3-89 and meet the requirements of the new standards GB18242-2000, GB18243-2000, GBT328.10-2007 GB/T16777-2008/2011. This instrument uses an electric air pump for pressurization and can be used by departments related to scientific research, construction, production, design and teaching.

    This product adopts electrical automatic control for gas pressurization, automatically maintaining pressure, and digital timing, providing great convenience for the detection, testing, and research of the impermeability of asphalt felt and waterproof rolls. When the test pressure is not greater than 0.6Mpa, this instrument can be used to determine the permeability or water permeability of other materials.

2、 Technical parameters

1. Power supply voltage: 220V 50Hz

2. Test pressure: 0-0.6Mpa

3. Number of test pieces: 3 pieces (one set)

4. Sample size: 120mm

5. Inner diameter of permeable disc: φ 92mm

6. Test water temperature: 20 ℃ ± 5
