Overview

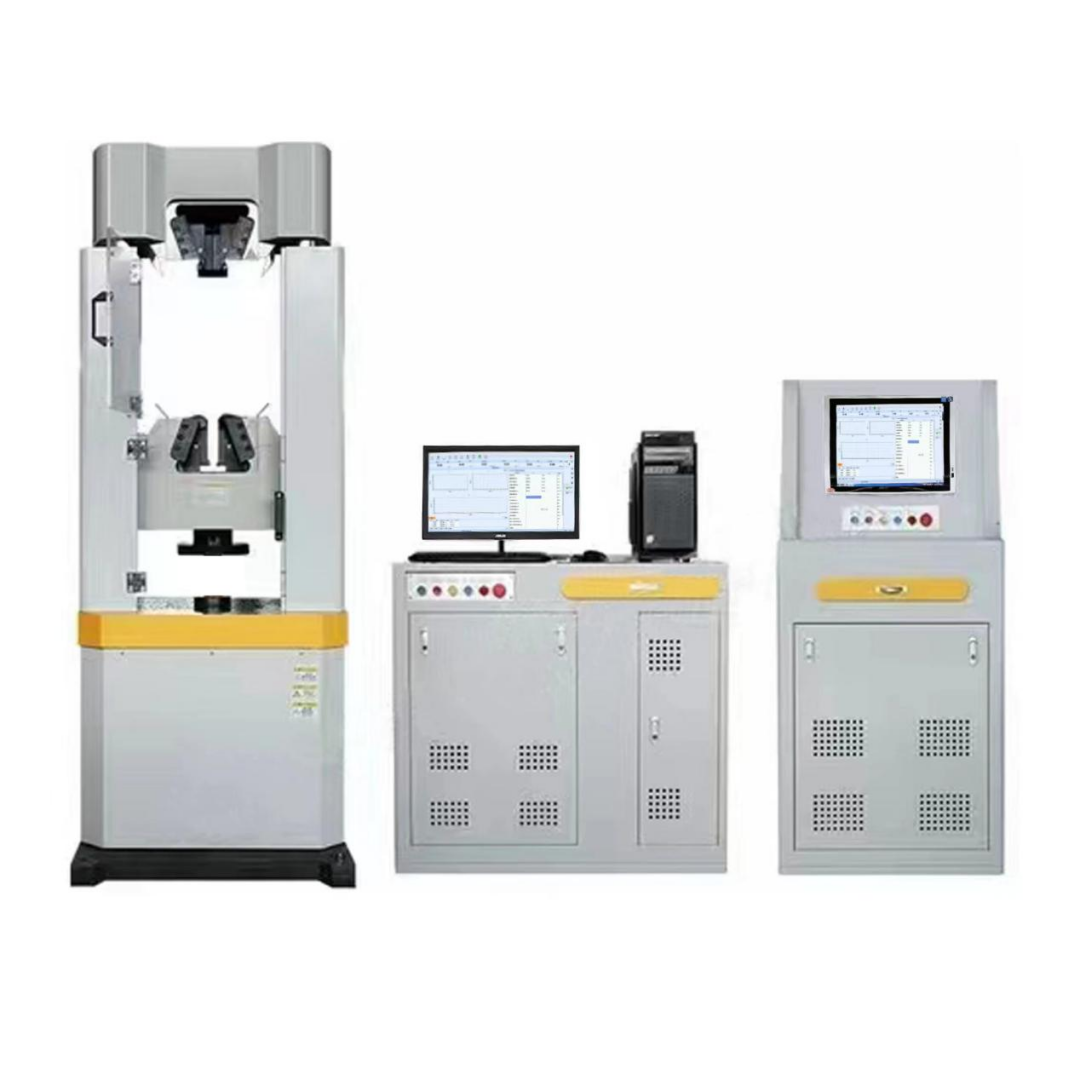

The WES-2000B microelectromechanical hydraulic servo universal material testing machine is a high-precision material testing equipment that uses hydraulic power source drive, electro-hydraulic servo control technology, computer data acquisition and processing, and can achieve closed-loop control and automatic detection. It consists of four parts: testing host, oil source (hydraulic power source), measurement and control system, and testing equipment. The maximum test force is 2000KN, and the accuracy level of the testing machine is better than level 1.
The WES-2000B microelectromechanical hydraulic servo universal material testing machine is a product with strong universality, which can meet various standard tests in the national regulations on metal tensile testing. It can also perform tensile, compression, bending, shear and other types of tests on different materials or products according to other standards. It can obtain performance indicators such as tensile strength, yield strength, specified non proportional tensile strength, elastic modulus, etc. of the tested material, and can achieve closed-loop control such as constant rate loading, constant rate deformation, constant rate displacement, and constant rate strain. It can also conduct process qualification performance verification tests on materials or products.
The testing machine is a six column, dual space structure, with a tension space between the upper and lower crossbeams and a compression space between the lower crossbeam and the test bench. The testing space is automatically adjusted by driving the lower crossbeam up and down through the rotation of sprockets and screws. Hydraulic controlled clamping jaws are installed on the upper and lower crossbeams, and standard models are equipped with V-shaped and flat jaws for clamping cylindrical and flat specimens for tensile testing; The bottom end of the lower crossbeam of the standard model is equipped with an upper pressure plate, and the test bench is equipped with a lower pressure plate with a spherical structure, which can be directly used for compression testing.
The design of the mainframe of the testing machine considers the possibility of expanding and assembling other fixtures to complete more experiments. For example, bolt fixtures can be used for bolt tension and load holding, bending fixtures can be used for bending tests of round bars or plates, shear fixtures can be used for shear strength tests of round bars, and anti bending, shear, splitting, elastic modulus meters can be added in compression space for concrete and cement block tests. In addition, various tests of the product can be completed by equipping fixtures such as steel balls, anchor chains, and fasteners.
The testing machine and its accessories comply with the requirements of GB/T228, GB/T2611, and GB/T16826 standards.
Technical Parameters
WES-2000B | |
Maximum test force | 2000KN |
Range of measurement | 10-100%(Full range without grading) |
Grade | 1 level |
minimum resolution | 0.01KN |
Maximum stretch/compression space | Stretching ≤ 800mm Compression ≤ 650mm |
Flat style clamping thickness | 0-50mm |
Circular style clamping size | 20-70mm |
Cylinder diameter | 300mm |
Working piston stroke | 250mm |
Size of upper and lower pressure plates | Φ250mm |
Maximum ascent speed of the tabletop | ≤70mm/min |
Maximum lifting speed of moving crossbeam | ≤300mm/min |
Input power supply | 380V±10V |
Motor Power | 3KW |
Overall dimensions of the host | 1200*1050*2923mm |
Control cabinet size | Horizontal cabinet 1100 * 630 * 940mm/Vertical cabinet 750 * 560 * 1540mm |
Weight | 6800KG |
Packing list
Item | NO. | Name | QTY | Note |
Host | 1 | Universal material testing machine | 1 unit | |
Attachment | 1 | Spherical seat | 1 piece | Installed in the main chassis |
2 | lower platen | 1 piece | ||
3 | Upper platen | 1 piece | ||
4 | High pressure oil pipe | 5 pieces | ||
Control cabinet | 1 | Electro hydraulic servo universal control cabinet | 1 unit | |
File
| 1 | operation instructions | 1 copy | Installed in the control cabinet |
2 | certificate of conformity | 1 copy | ||
Attachment | 1 | Industrial computer | 1 unit | |
2 | Grommet | several | ||
Attachment | 1 | Flat style jaw | 1 set (4 pieces) | Installed in the accessory box |
2 | Round shaped jaw | 2 sets (4 pieces each) |
