Introduction

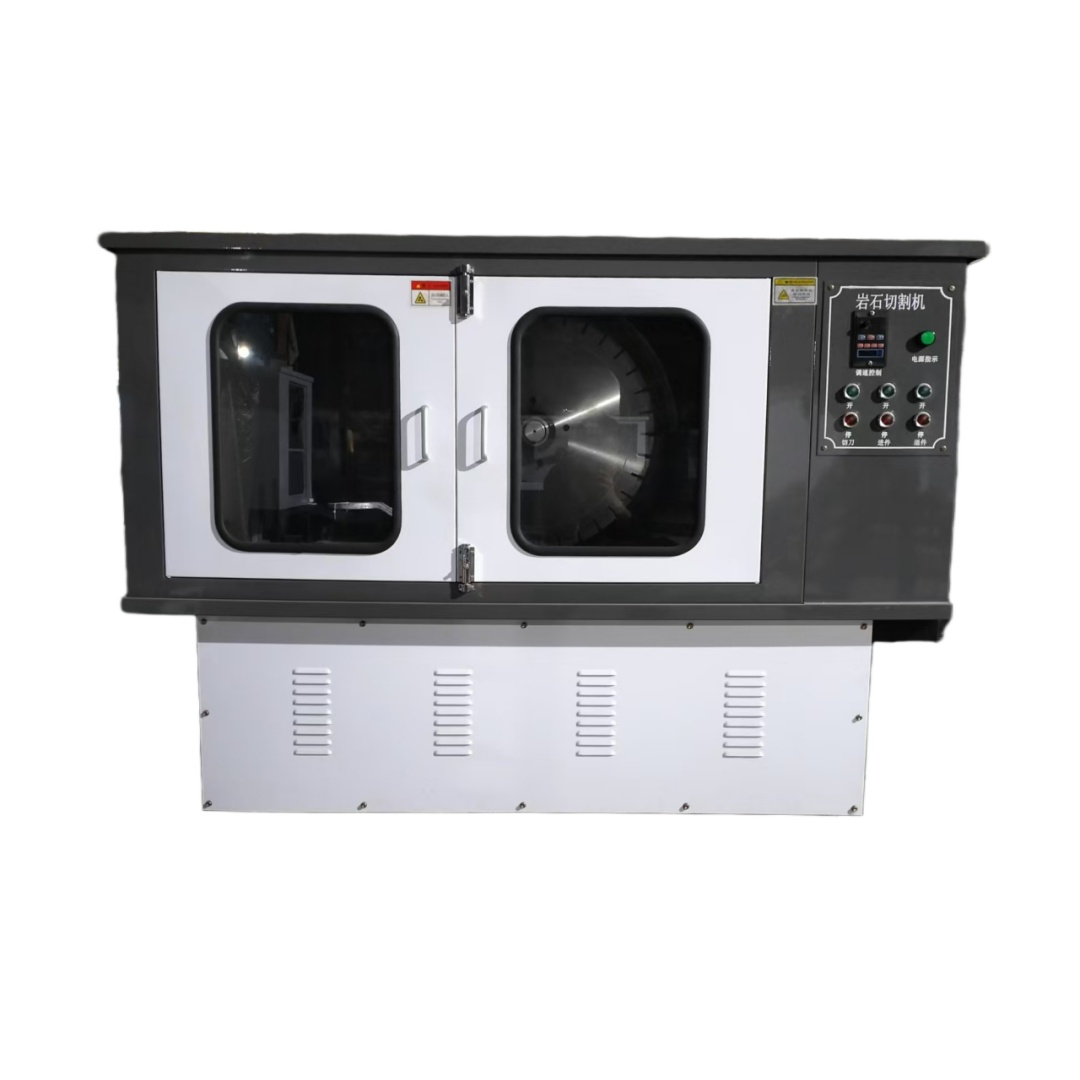

The double blade rock core cutting machine is a new generation non-metallic cutting machine developed by our company for the sixth time based on the requirements of the laboratory of the Ministry of Highways and Geology for making stone specimens, and with reference to relevant information from the Ministry of Transport, the Ministry of Geology, and the Ministry of Chemical Industry.

The machine has a compact structure, is fully enclosed, and has low noise. The cutting surface of the stone material is flat and smooth, and it can be used for multiple purposes. It can cut concrete, core core core samples, natural stones, asphalt, refractory materials, marble, and pipes, as well as cut thin slices of light. It is widely used for sample preparation in scientific research departments such as petroleum, geology, coal, metallurgy, railways, highways, and bridges.

Technical Parameters

v Spindle motor: single-phase motor 5.5KW 220V

v Cutting speed: 1800 revolutions per minute

v Cutting blade line speed: 33-45m/s

v Diamond cutter: Φ 500X3.8X50mm

v Workpiece advance and retreat motor: 220V 0.55KW

v Maximum cutting blank size: thickness 180mm, length 450mm

v Dimensions: 1700 × 750 × 1150mm

v Weight~300Kg
