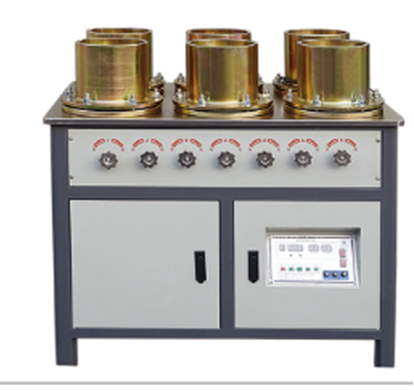

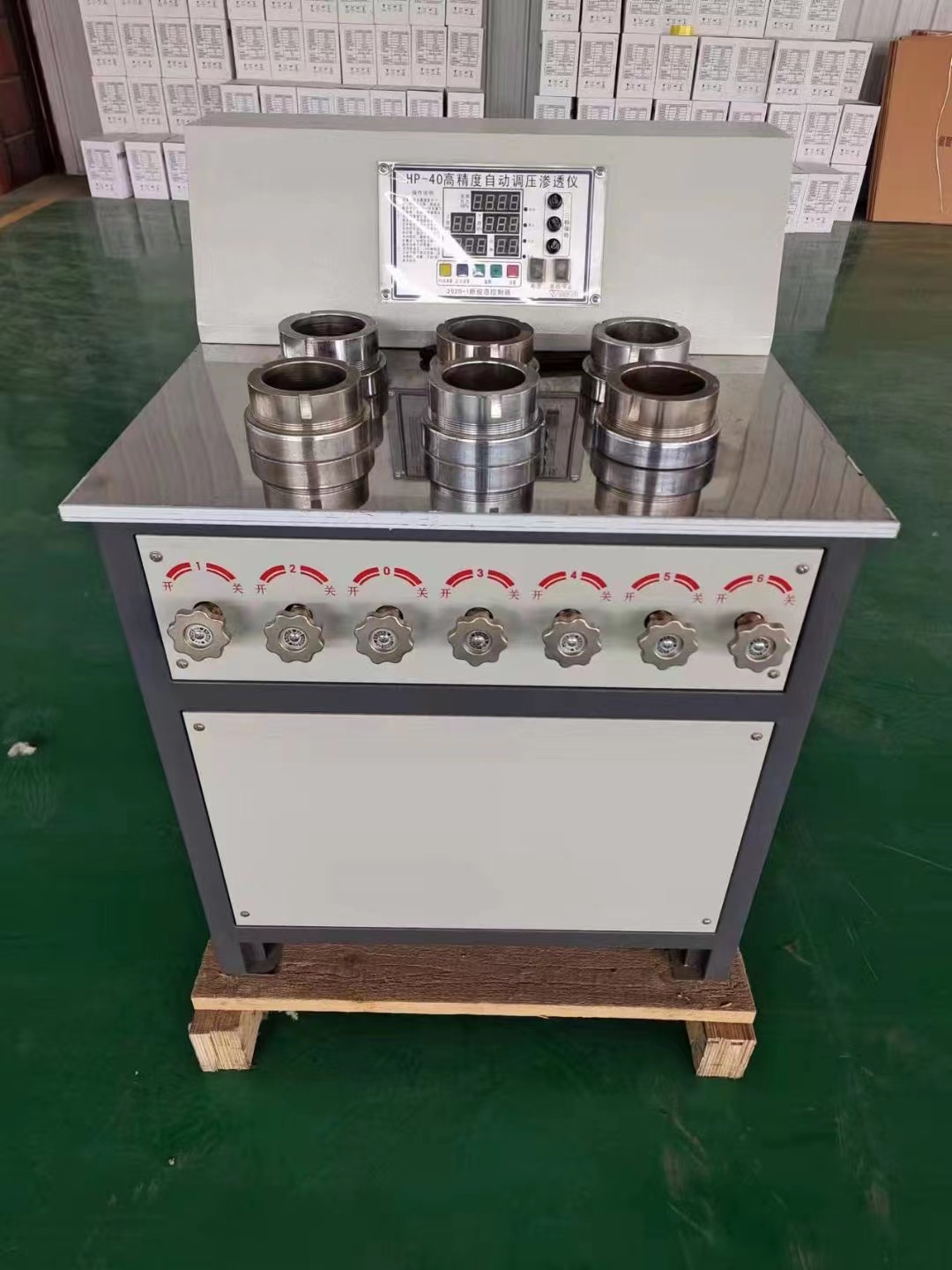

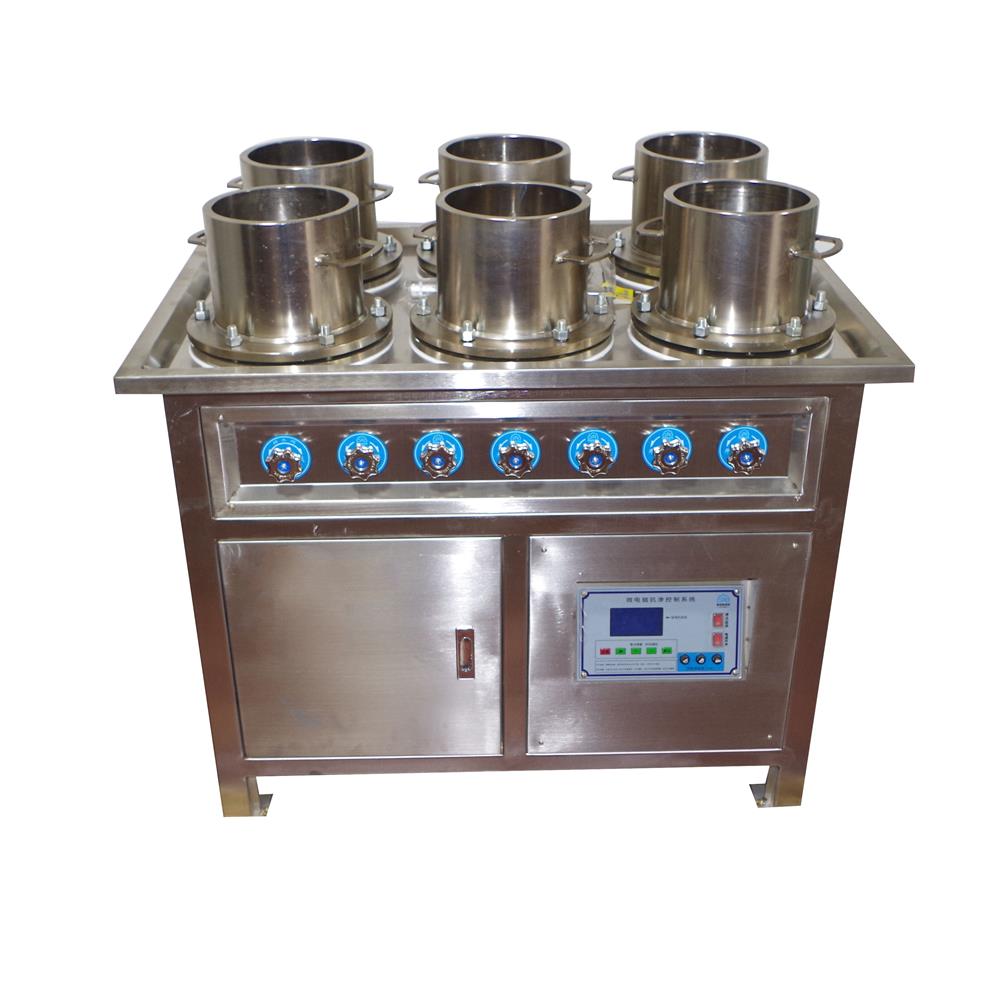

Automatic pressurized concrete permeability tester-6 pieces

自动加压混凝土渗透仪-6件

1、 Structural principle:

The HP-4.0 concrete permeability tester is a simple device that uses a sealed container and its connected pipeline system to have equal pressure at all points (regardless of water head), applies pressure with a water pump, and maintains the pressure within the specified range through an intelligent numerical control meter for testing.

2、 Main technical parameters:

1. Maximum allowable working pressure: 4MPa/cm2

2. Usage method: automatic voltage regulation

3. One test piece can be made: 6 pieces

4. Geometric dimensions of the trial mold: 175 × one hundred and eighty-five × 150mm

5. Motor power: 90W

6. Speed: 1390r/min

7. External dimensions: 930 × six hundred and thirty × 900mm

8. Packaging size: 1030 × seven hundred and thirty × 850mm

9. Gross weight: 148 kilograms

10. Net weight: 110 kilograms
