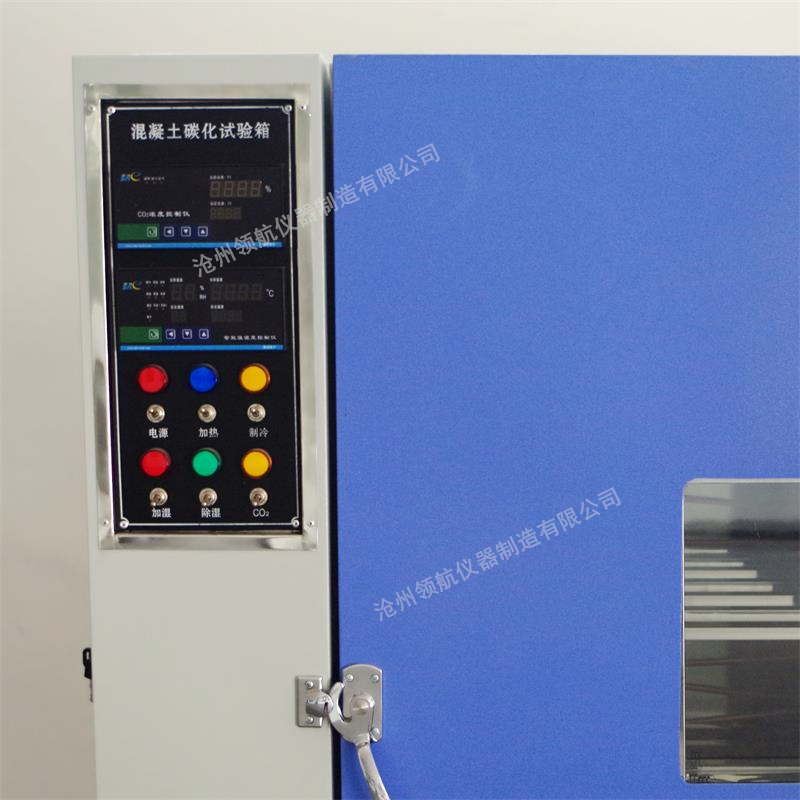

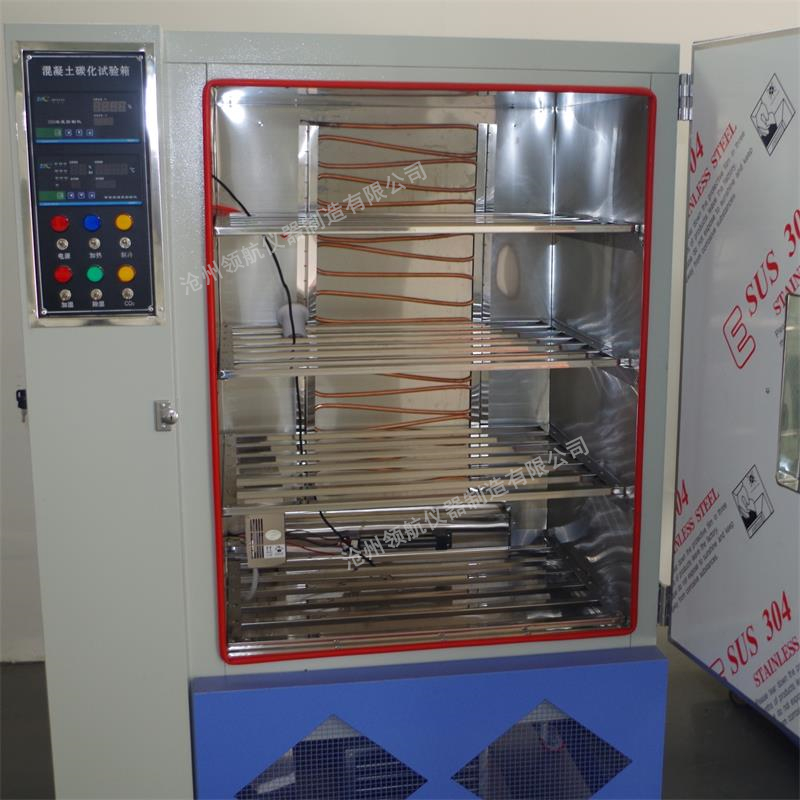

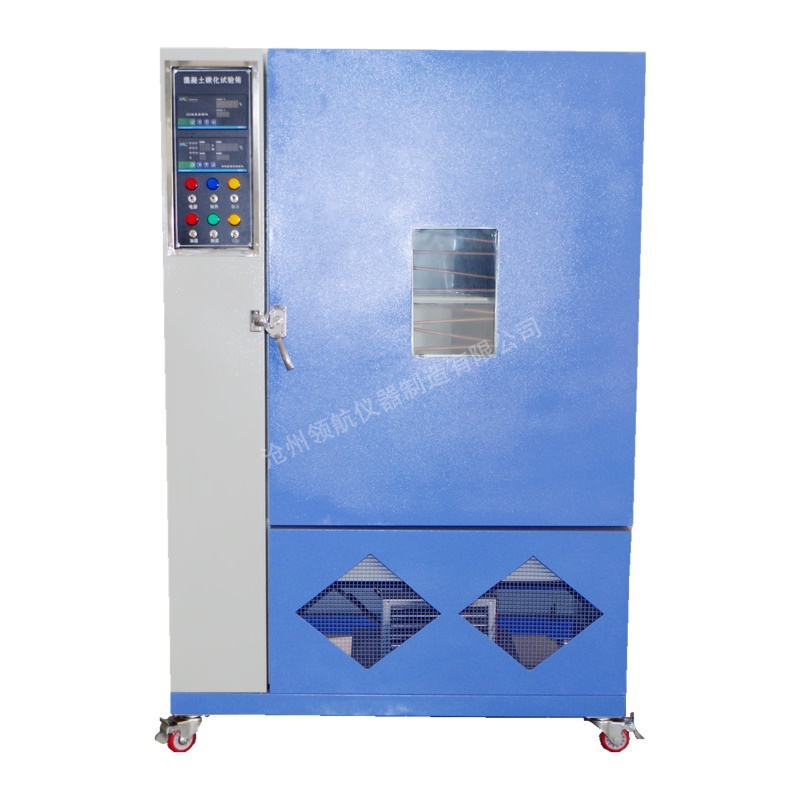

The carbonization test chamber is a sealed box, with a high-quality cold-rolled steel plate outer shell, high-quality stainless steel inner liner, and polyurethane foam insulation layer. The grating is made of stainless steel profiles. Has excellent insulation, sealing, and corrosion resistance. Electrical control is achieved through a microcomputer controller. Automatically control according to the set temperature, humidity, and CO2 concentration to ensure constant temperature, humidity, and CO2 concentration inside the box.

Technical parameters:

1. Control temperature: 20 ℃ ± 2; Resolution: 0.1 ℃; Uniformity ≤ 1 ℃, accuracy: ± 0.5 ℃.  Control range: (15-25) ℃

2. Control humidity: 70 ± 5; Resolution: 1%; Uniformity ≤ 2%, accuracy: 2%.  Control range: (55-85)%

3. CO2 concentration: 20% ± 1%; Resolution: ± 0.1%; Uniformity ≤ 1%, accuracy: 0.5%.

4. Heating power: 700W

5. Cooling power: 250W

6. Humidification power: 30W

7. Power supply: 220V 50 ± 1HZ
