双头磨片机

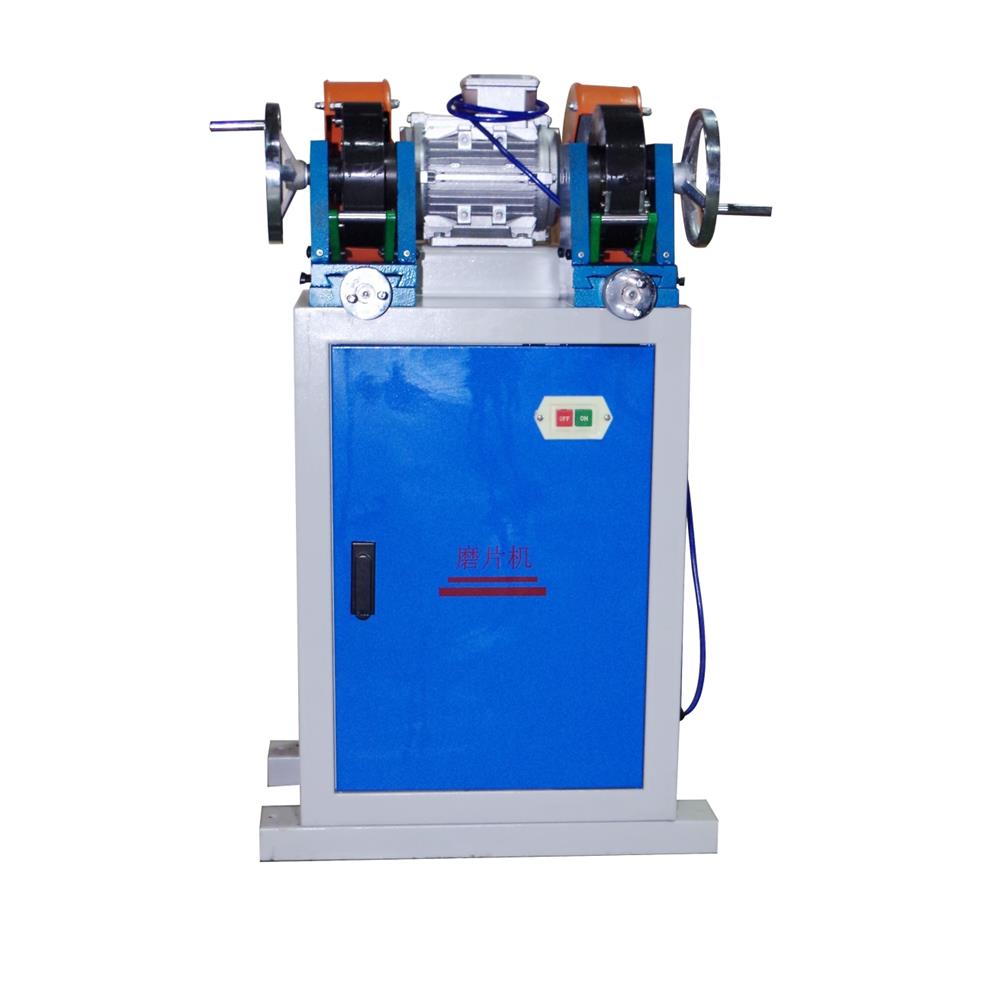

MP-Ⅱ  Double head grinding machine / Rubber grinding machine

Usage Overview:

The MP-Il type grinding machine is specifically designed for rubber factories and research institutions to grind rubber test pieces to a certain thickness for testing with other testing equipment. It is one of the essential equipment in the inspection of rubber quality. The MP Il type grinding machine is a new product that is improved on the basis of the MP type according to user requirements. It has a compact structure, and both coarse and fine grinding wheels work simultaneously. It has the characteristics of one machine for two purposes, making it easy to use, time-saving, safe and reliable.

Technical parameters:

▲ Linear speed of grinding wheel: 12m/s

▲ Grinding wheel specification: G260APR170× 40× 3236 G260APR capsules | 170× 40× 3280 capsules

▲ Working size diameter: 160× 44mm center height 214mm

▲ Working wheel stroke: 20mm

▲ Sample size: L>260 W<=36 H<=8m<>

▲ Overall dimensions: 500× 400× 314mm

▲ Weight: 80Kg
