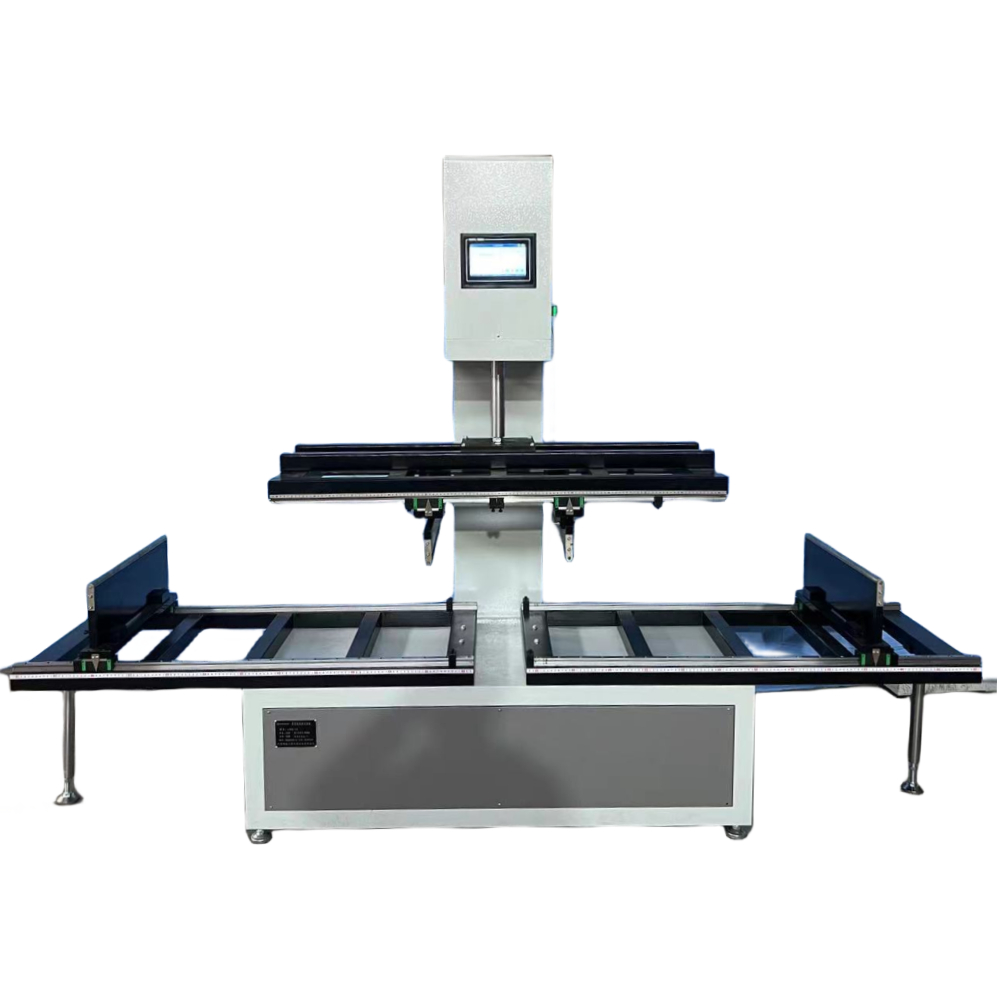

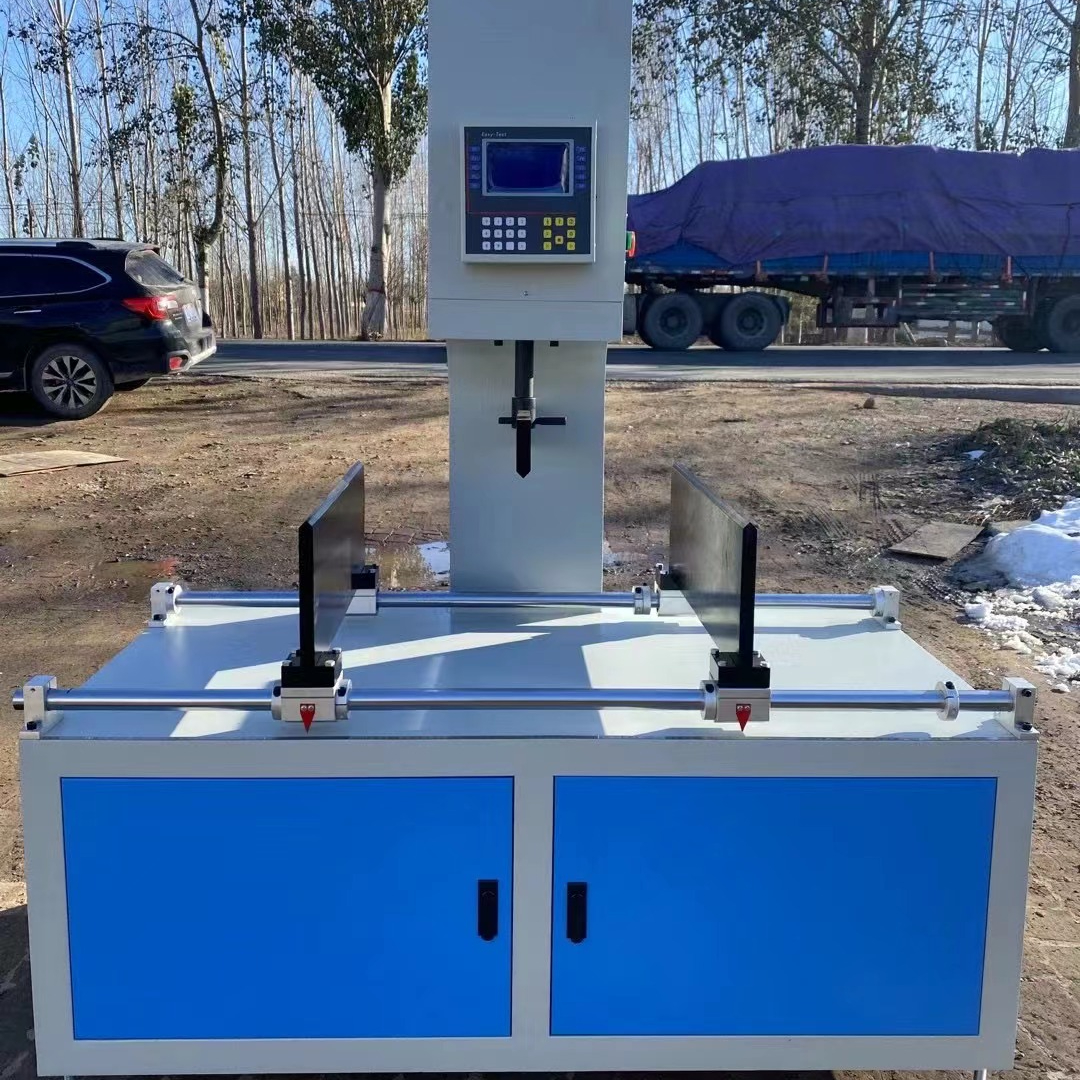

BKZ-10 Insulation board bending strength testing machine

BKZ-10 保温板抗折强度试验机

Summary

The insulation board bending test machine (hereinafter referred to as the bending machine) uses a three-point bending beam test to reflect the mechanical properties of the material by measuring the bending strength. Mainly used to measure the bending strength of insulation boards and other materials, especially suitable for testing the bending strength of large-sized and high-strength insulation boards. It can also be used for measuring the bending strength of other non-metallic material plates. This machine has the advantages of simple operation, stable loading, high measurement accuracy, and intuitive reading, making it an advanced testing method for researching material strength.

Main technical parameters

1. Maximum test force: 10000N

2. Workbench stroke: 200mm

3. The radius of the support roller and blade pressing roller R=10mm

4. The spacing between two support rollers is 70-1200mm

5. Power supply: 50Hz AC 220V ± 10%

6. Boundary dimension: 1500 × eight hundred and fifty × 1600 (mm)
