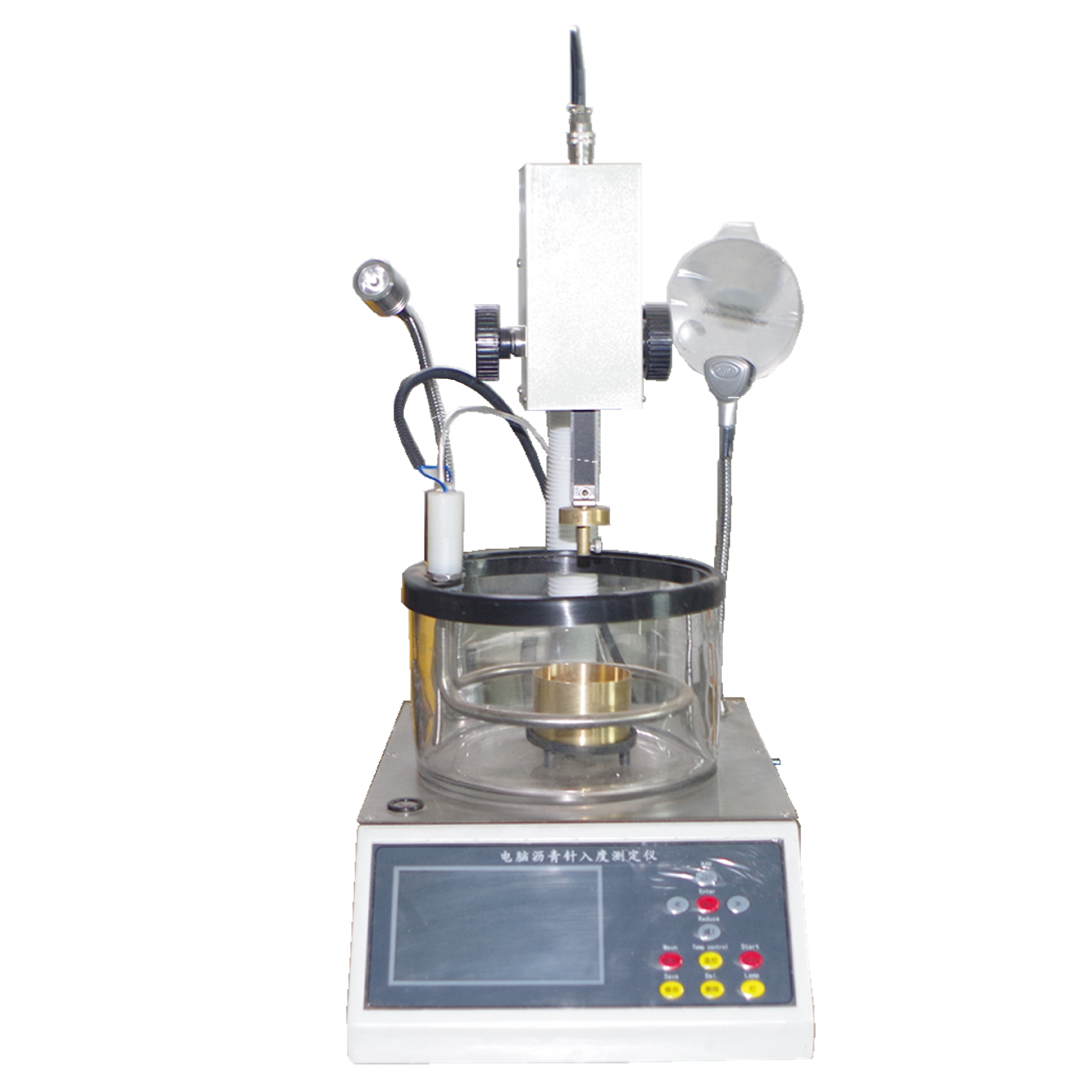

沥青针入度测试仪

Asphalt penetrometer

Technical parameters

1. Minimum indexing: 0.01mm

2. Power supply: 220V/50HZ

3. Display value error: <0.05mm

4. Weight of needle and connecting rod: 50± 0.05g

5. Range: ≥50MM

6. Adjust horizontal device: Yes

7. weight: 50±0.05G can be composed of 100±0.05G to meet the test requirements

8. temperature control accuracy: ±0.1°C (instrument with magnetic stirring device)

9. Sample plate material: metal cylindrical flat bottom.

10.Sample dish diameter: 55MM

11.Sample depth: 35MM (needle penetration less than 200)

12.Flat bottom glass dish: the capacity is not less than 1L, the depth is not less than 80MM, the maximum sample dish. Inner triangle bracket to ensure the stability of the sample plate

Introduction

The new computer asphalt needle penetration meter is a kind of advanced capacitance digital displacement sensor, combined with intelligent microcontroller circuit developed to measure the asphalt needle penetration instrument, the instrument meets GB/T4509-2010 "Petroleum asphalt needle penetration Determination Method", Astmd5-95 asphalt Needle Penetration Test and T0604-2011 Asphalt needle penetration Test. Simple to use, convenient, no temperature drift, no time drift, realize the test process automation, digitalization, computerization. It provides a kind of computerized automatic asphalt test instrument with high precision, good stability and reliable performance for highway, municipal administration, construction, petroleum and other fields in China. Mainly used for the determination of viscous road asphalt, viscous shale asphalt, and liquid petroleum asphalt, asphalt materials after distillation or emulsification test residues, petroleum wax, grease, etc. Needle penetration.
