沥青软化点试验仪

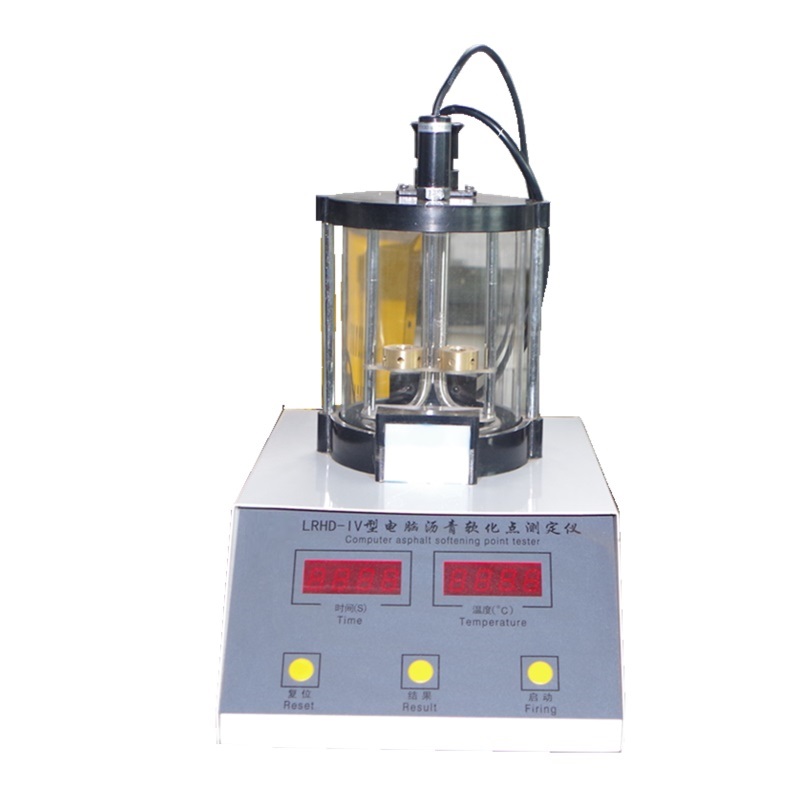

Asphalt softening point tester

Main Parameters

1. Minimum temperature division 0.1 ℃

2. Working environment: Room temperature less than 35 ℃; In situations where there is no strong direct light.

3. Minimum time division of 1S

4. Measurement range: 5-80 ℃ (water medium); 80-180 ℃ (glycerol medium)

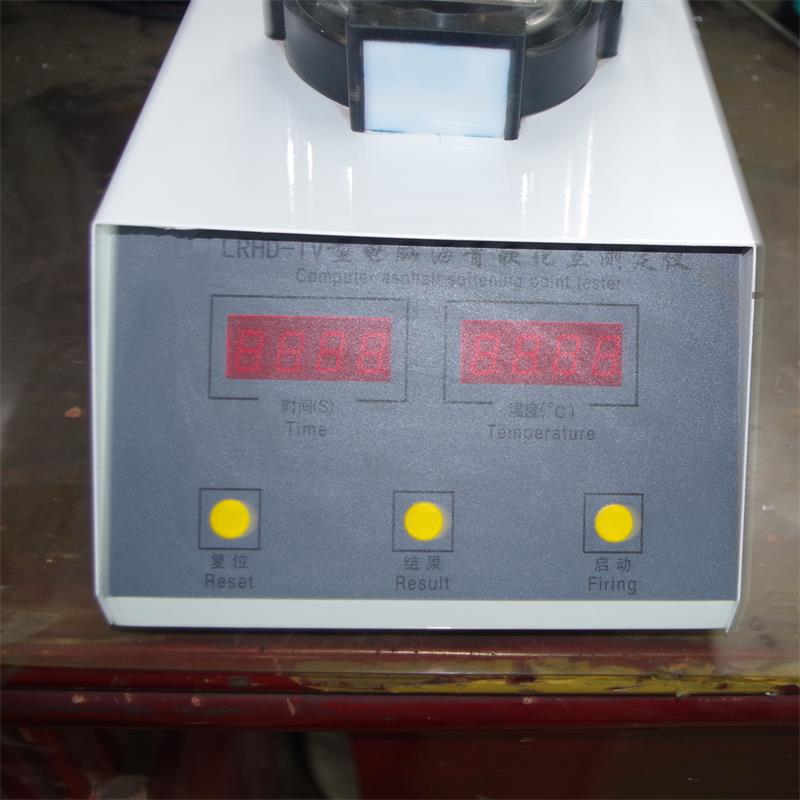

5. Dual four digit digital tube display

6. Steel ball: φ= 9.53MM G=3.5 ± 0.05G

7. Heating power: ≤ 800W

8. Mixer: The mixing speed is continuously adjustable

9. Heating rate: Automatically adjust to 5.0 ± 0.5 ℃/MIN after starting for three minutes

10. Voltage frequency: 220V ± 10%, 50HZ

11. Flat bottomed insulated dishes: Glass products with a capacity of not less than 1L, a depth of not less than 120mm, and a diameter of not less than 86mm

Introduction

This model of computer asphalt softening point tester is based on the global method to determine the softening point of viscous petroleum asphalt. This instrument is suitable for measuring the softening point of various types of asphalt such as road petroleum asphalt, coal tar asphalt, and liquid petroleum asphalt. It is the preferred instrument for highway, bridge construction, and research institutions. Adopting microcomputer CPU control, infrared scanning detection, linear heating, and magnetic stirrer, it meets the requirements of national testing standards (GB/T4507-2014) and the industry standard T0606-2011 "Asphalt Softening Point Test" (Global Method) of the Ministry of Transportation. This instrument has achieved the advantages of simplifying the experimental process, automation, digitization, high measurement accuracy, and large range.
