1、 Purpose:

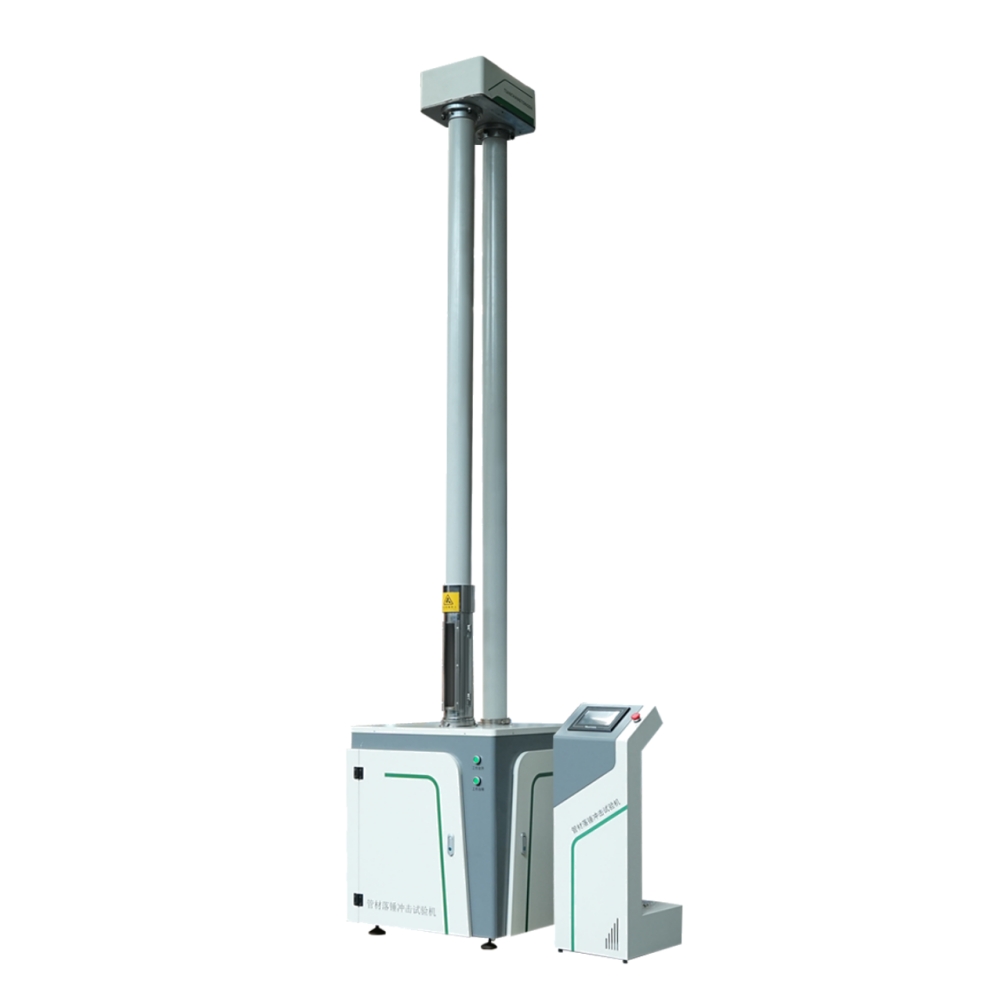

The pipe drop hammer impact testing machine is suitable for drop hammer impact testing of various plates and pipes. This testing machine can preset the impact height, automatically lift the hammer, automatically drop the hammer, and automatically prevent secondary impact. The whole machine has a good structure, high rigidity, and high precision and reliability.

meet the standard

GB/T 14152-2001

GB/T14153-2001

ISO3127

2、 Main technical parameters

1. Operating temperature: 10 ℃~35 ℃;

2. There are no large vibration sources or strong electromagnetic fields nearby;

3. There is no corrosive medium in the environment, and attention should be paid to ensuring good ventilation in the electrical control box;

4. Power supply: AC 380V three-phase four wire total power 500W;

5. Hammer body quality: see packing list;

6. Workbench travel: 0~630mm;

7. Hammer head: d25, d90

8. Impact height: 0-2000mm;

9. Height positioning error: ± 1mm;

10. Dimensions (mm): Height: 1050, Width: 900, Total Height: 3950
