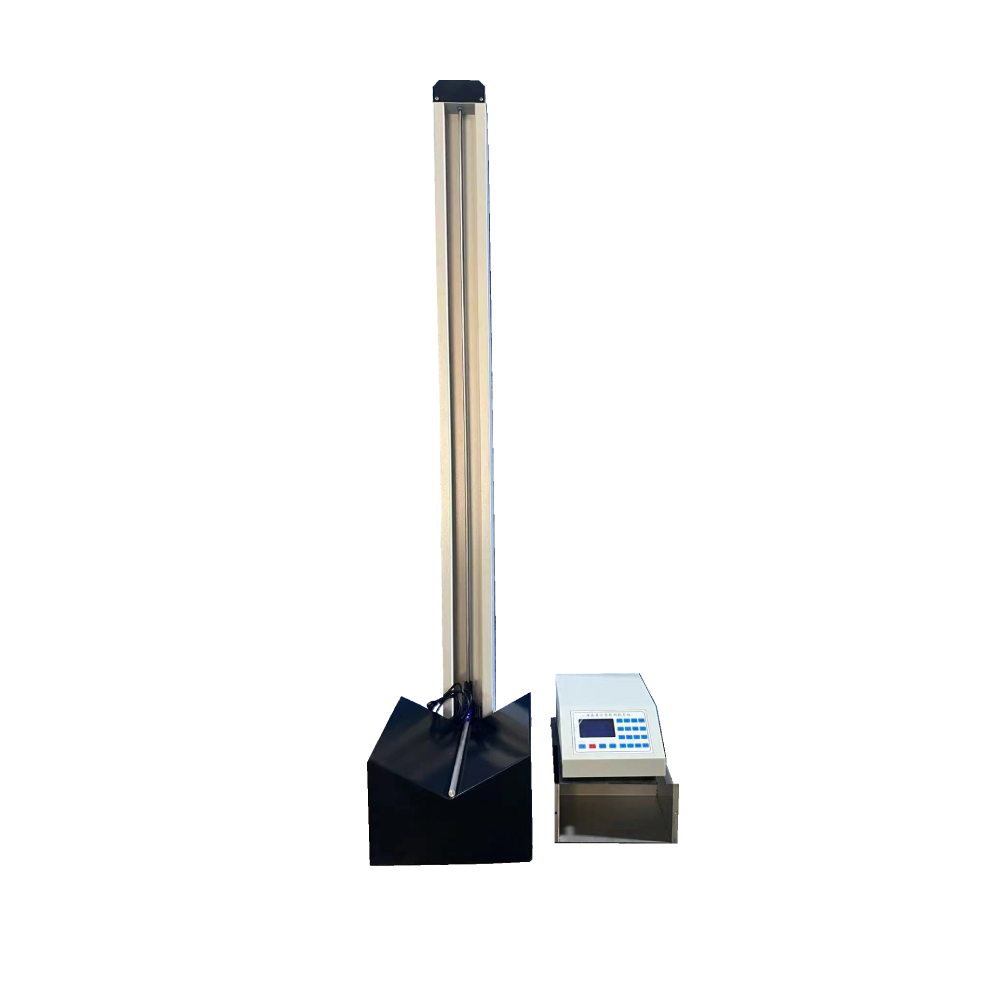

BNC-1000 Bellows inner diameter tester

BNC-1000波纹管内径测量仪

Introduction

The corrugated pipe inner diameter measuring instrument is used for measuring the inner diameter of the corrugated pipe ring stiffness test for prestressed concrete bridges, meeting the requirements of the Ministry of Transportation's "JT/T529 Plastic Corrugated Pipes for Prestressed Concrete Bridges" and "GB/T9647 Thermoplastic Pipe Ring Stiffness Measurement".

Technical parameters

1. Measurement of corrugated pipe specifications: φ 50mm- φ 1000mm

2. Measurement accuracy: ± 0.5%

3. Measurement resolution: 0.1mm

4. Digital display controller

5. Power supply: 220V, 50Hz

6. Overall weight: 10kg
