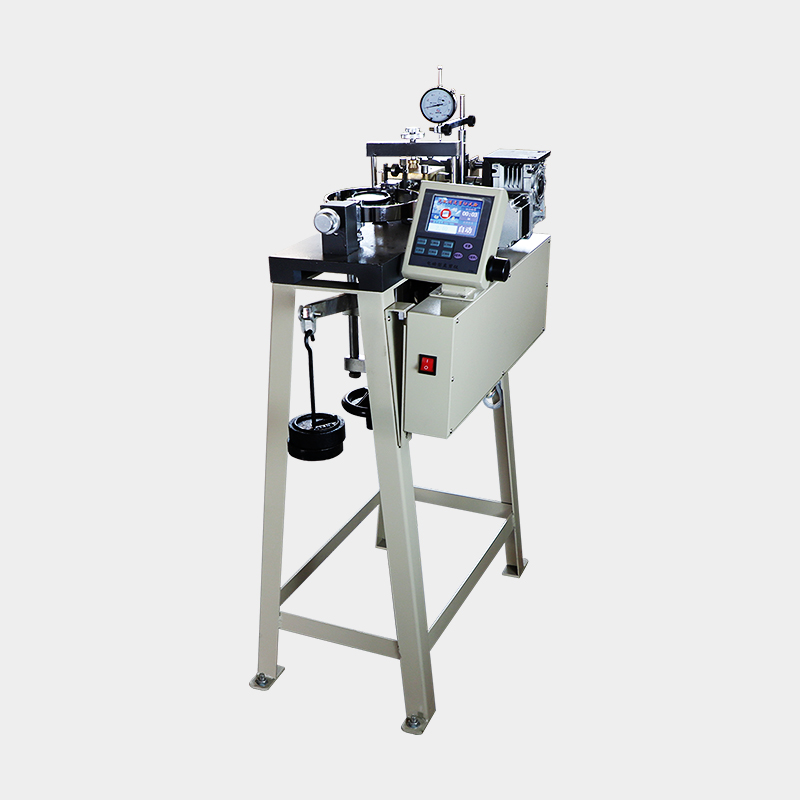

Strain Controlled Direct Shear Apparatus ZJ-1B

关注次数:6次

商品类型:Soil detector

上架时间:2025-05-26 15:11:05

description:IntroductionOur company's electric direct shear tester is used to measure the shear strength of soil. It adopts high-resolution color screen display and intelligent microcomputer control to achieve automation of the working process, easy operation, high accuracy, stable speed, reliable performan...

hotline:18518980353


Introduction

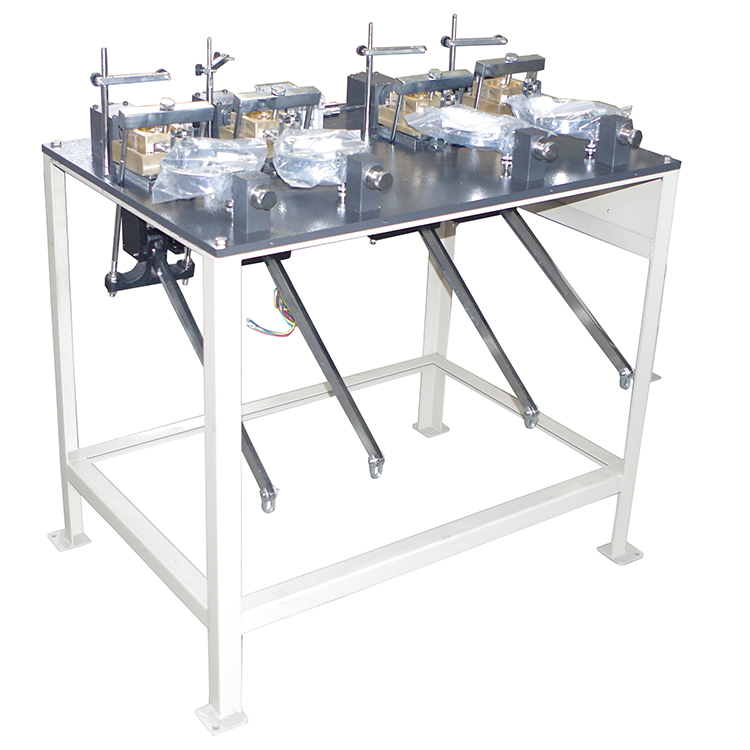

Our company's electric direct shear tester is used to measure the shear strength of soil. It adopts high-resolution color screen display and intelligent microcomputer control to achieve automation of the working process, easy operation, high accuracy, stable speed, reliable performance, and beautiful appearance. The instrument uses high-performance servo motors as the driving source, greatly reducing instrument vibration. The electric shear rate can be selected, and the rate can be quickly changed. It is easy to use and durable. It can simultaneously perform four sample tests and shear, and has an automatic shutdown mechanism when returned.

This device has made the following improvements:: the transmission mode has been changed from the original DC servo motor to a compact stepper motor, the motor power supply has been changed from the original 220V to 24V safe voltage, and the lever force point has been improved from the original blade type to a bearing type. Therefore, this instrument is safer, more sensitive, compact, more applicable, and has lower noise than before. The use of this instrument has laid a good foundation for laboratory automation.



This instrument is mainly used to determine the shear strength of soil. Usually four soil samples are used. Apply horizontal force to shear under different vertical pressures (400Kpa, 300Kpa, 200Kpa, 100Kpa, 50Kpa optional) to obtain the shear stress at failure, and then determine the soil's shear strength parameters, internal friction angle, and cohesion based on Coulomb's law. (Implementation standard: T0140-1993/T0141-1993/T0142-1993/0143-1993/T0176-2007 in GB/T50123-2019 JTGE40-2007).

Product features

1. Select 5 speeds directly (0.02-2.4) mm/min or infinite speed regulation

2. Color LCD display

3. The motor can be directly controlled for forward and reverse rotation using a knob

4. Limit protection



Controller parameters

1. Power supply AC=220V

2. Zui High Power: 250W

3. Shear rate: 0.02mm/min-2.4mm/min (five speed or infinite speed regulation)



Technical indicators

1. The sample area is 30cm ² and the height is 20mm.

2. Leverage ratio 1:20

3. Maximum horizontal load of 1.2KN

4. Vertical graded loading of 50, 100, 200, 300, 400Kpa (with the hanging disc as the first load)

ZJ type direct shear apparatus

Sequence Table of Vertical Pressure Loading on Soil Samples

30cm²                  i=20:1


Load weight

Quantity (cumulative)

Pressure value

Kg

Piece

KPa

1

0.765(hanging scaffold)

1

50

2

0.765

1

100

3

1.53

1

200

4

1.53

1

300

5

1.53

1

400
