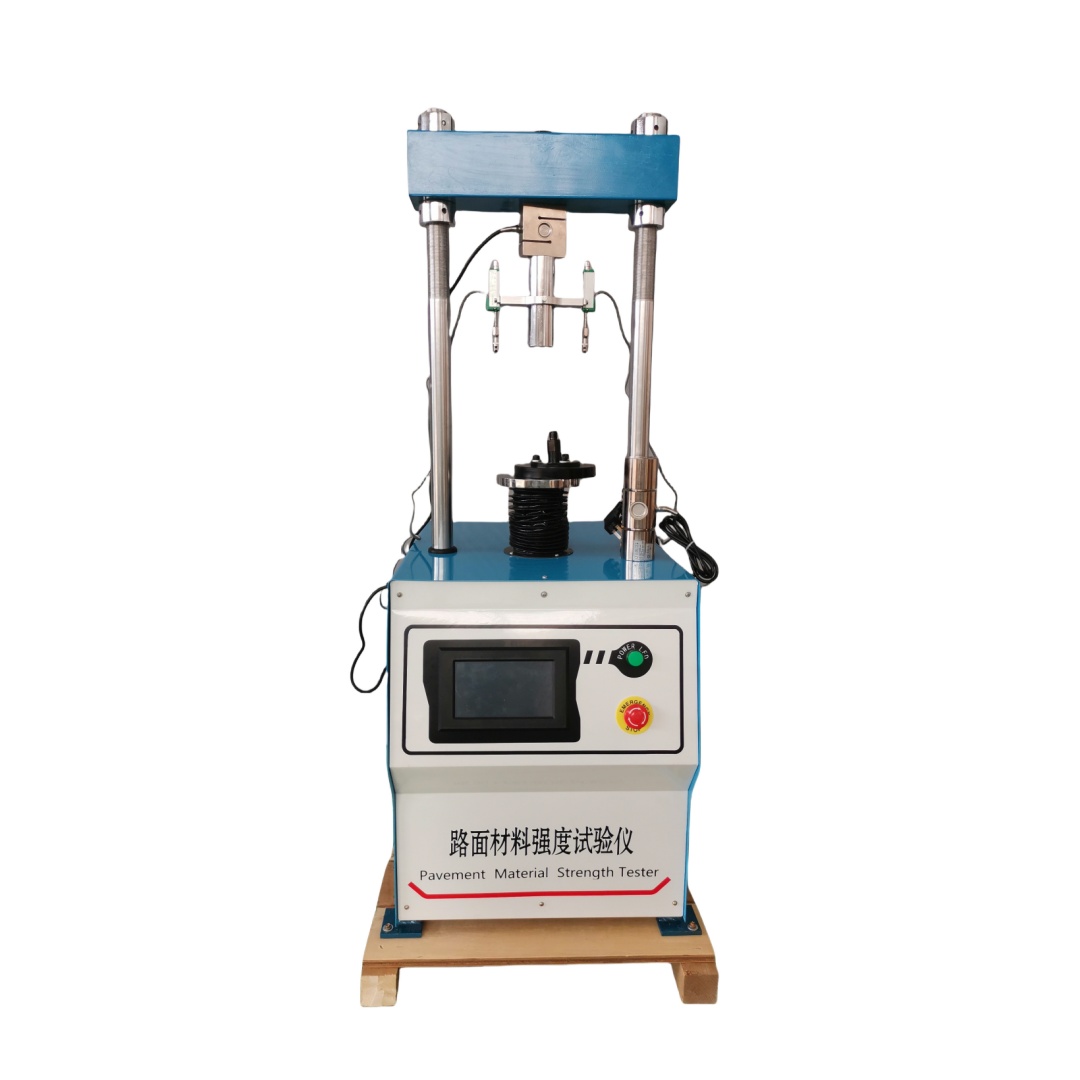

YTL-20C pavement material strength tester

关注次数:4次

商品类型:Soil detector

上架时间:2025-05-26 12:53:15

description:Product overviewThis machine combines advanced computer technology with high-precision sensor technology, with simple operation, accurate test data, and stable performance. The instrument is equipped with overload protection. Automatic testing and recording of instruments. This machine mainly adopts...

hotline:18518980353


Product overview

This machine combines advanced computer technology with high-precision sensor technology, with simple operation, accurate test data, and stable performance. The instrument is equipped with overload protection. Automatic testing and recording of instruments. This machine mainly adopts two column support, with a reasonable mechanical structure to ensure the accuracy of instrument use. The design is simple and elegant, and after installing pressure sensors, it can be used to measure the unconfined compressive strength, CBR test, Marshall stability test of various stabilized soil specimens with binders. It can also be used for other tests that require vertical load application, and comes standard with dual pressure sensors and dual displacement sensors.

Technical Parameter

1. Rated pressure: 200kN, measurement error: ± 0.05% (F.S)

2. Test displacement: (0-25) mm, measurement error: ± 0.5% (F.S)

3. Loading rate: 0.1mm/min-51mm/min (can be freely set)

4. Human computer interface: 7-inch touch color screen

5. Working power supply: AC (220 ± 10%) V 50Hz

6. Power consumption of the whole machine: 2500W

7. Distance between two columns: 320mm; screw up stroke 200mm

8. Dimensions: 550 * 580 * 1400mm
