    GTJ-P800 pile dynamic tester

    关注次数:554次

    商品类型:Electronic testing equipment

    上架时间:2023-10-26 13:44:03

    description:GTJ-P800基桩动测仪GTJ-P800 pile dynamic testerUsage Overview:The GTJ-P800 pile dynamic tester uses the low strain emission wave method to detect the integrity of piles, and is suitable for testing cast-in-place piles, driven piles, and slender rod-shaped bodies (such as bridge piers) with exposed to...

    hotline:18518980353


    GTJ-P800基桩动测仪

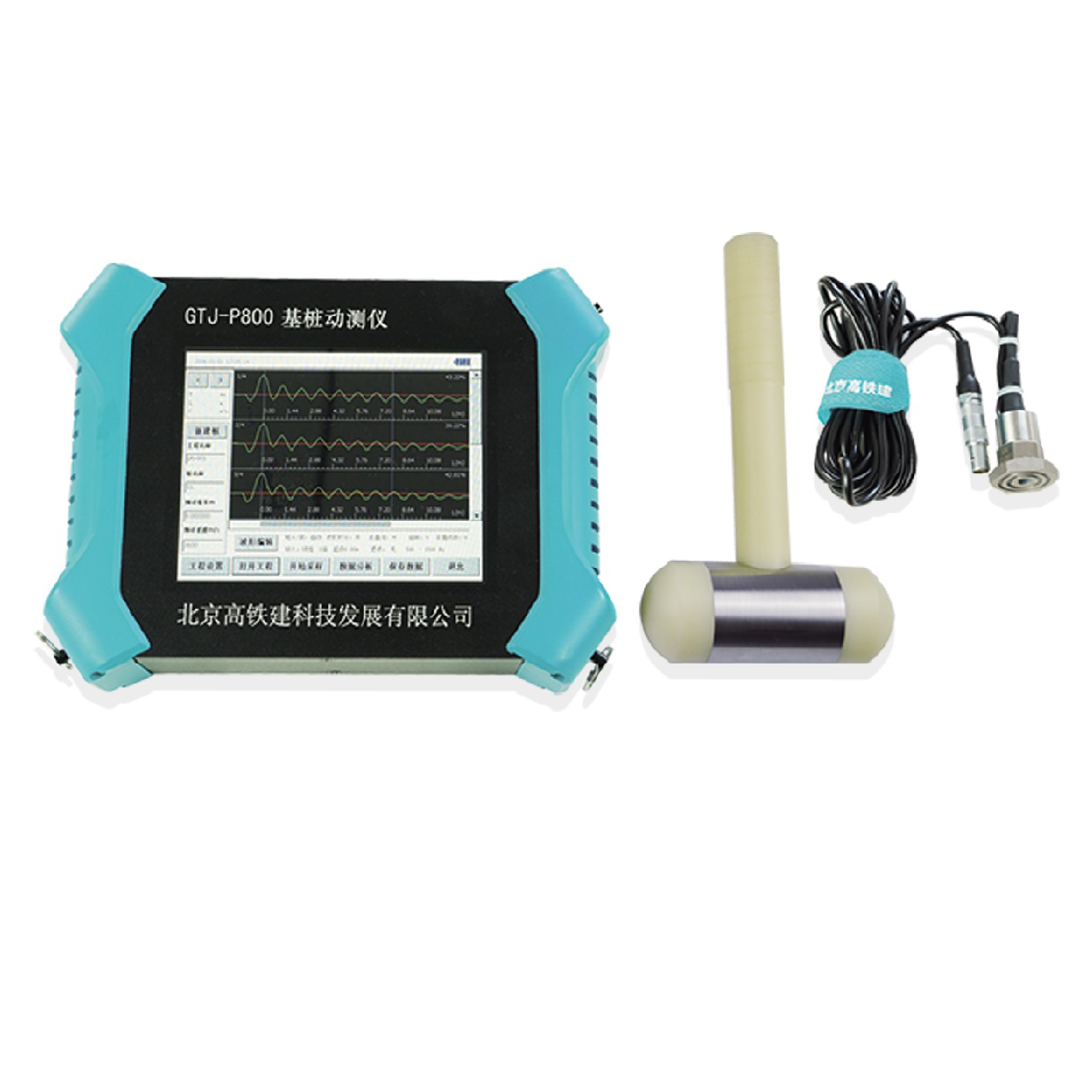

    GTJ-P800 pile dynamic tester

    Usage Overview:

    The GTJ-P800 pile dynamic tester uses the low strain emission wave method to detect the integrity of piles, and is suitable for testing cast-in-place piles, driven piles, and slender rod-shaped bodies (such as bridge piers) with exposed top surfaces in ports, highways, railways, and buildings.

    Product features:

    (1) Newly upgraded wireless cloud transmission function;

    (2) The instrument adopts full touch screen operation, with a simple and convenient interface, allowing users to quickly grasp the usage method;

    (3) The host comes with analysis software; On site analysis and testing data;

    (4) Support multiple waveform processing methods to make defect localization more accurate;

    (5) Large capacity data memory, supporting mobile storage;

    (6) Built in rechargeable lithium battery, long standby time;

    (7) The analysis software on the Windows platform has comprehensive functions, flexible printing settings, and can print previews and output processing results, as well as generate detection reports.

    Technical parameters:


    Specification and model

    GTJ-P800

    System noise voltage

    Less than 2mV

    dynamic range

    Greater than 138dB

    Amplifier frequency band

    10Hz~10kHz

    A/D resolution

    16 bit A/D

    Sampling interval

    2us~32768us

    Sampling length

    102420484096

    Time indication error

    Less than 1%

    Number of channels

    1

    Magnification factor

    1~128

    Data transmission method

    Wireless cloud transmission (optional)

    Trigger method

    Signal triggering

    Sensor sensitivity

    100mV/g

    Sensor frequency band

    1-10000Hz

    Continuous working hours

    Greater than 10 hours

    source

    Built-in rechargeable lithium battery (+7.4V)

    display screen

    640*480 Capacitive screen

    Operation mode

    Touch Screen

    Weight: 1.24Kg

    Size: 220 * 160 * 50
