老化试验箱

Aging Test Chamber  / Hot air aging chamber

1、 Overview

This aging box is a product designed and produced according to national standards. The product has a series of advantages such as adjustable volume, light weight, good insulation performance, and so on. Equipped with automatic compensation function at the cold end, it has good anti vibration and anti-interference performance, automatic temperature measurement control, and high accuracy in temperature measurement and control.

This box provides high-temperature usage conditions for industrial production and scientific research units, and is mainly suitable for specimen aging and other aging purposes.

2、 Main performance parameters

Temperature range Room temperature:+10 ℃~300 ℃

Temperature deviation: ≤ ± 2.0 ℃

Temperature fluctuation: ≤ ± 0.5 ℃

Test timing range: 1-9999 (s, m, h)

Adjustable heating rate, average heating rate: 3 ℃~5 ℃/min

Ventilation time: 1-99 (s, m, h)

Adjustable air exchange rate: 3-10 times/hour, 50-100 times/hour, 100-200 times/hour (adjustable according to customer testing requirements)

Air exchange method: Natural air exchange, natural air exchange through the upper and lower air exchange holes on the box, forced air exchange, and forced air intake by the fan. The air flow rate is controlled by adjusting the speed control switch.

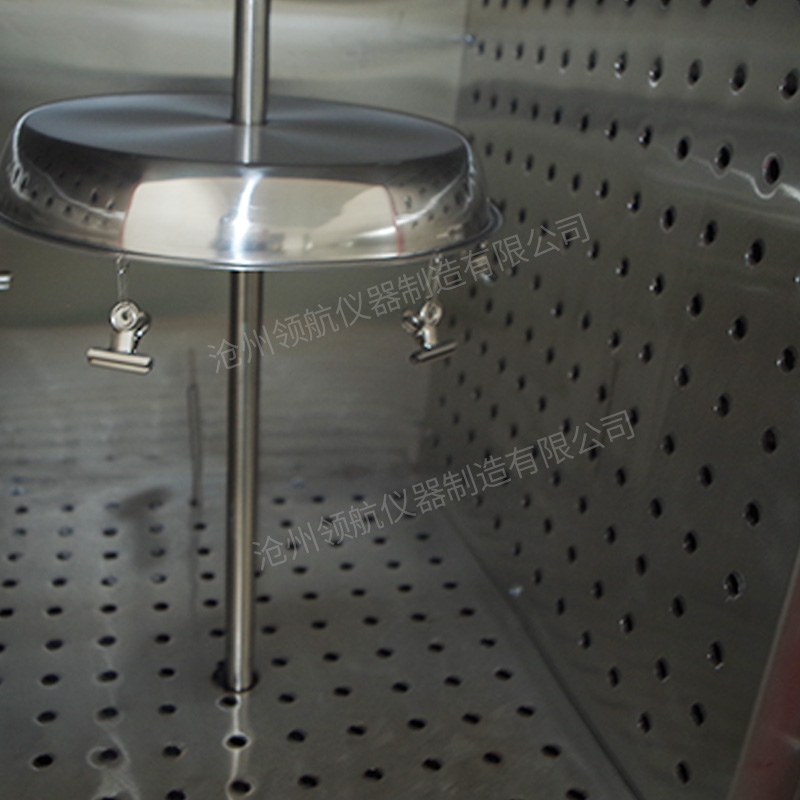

Sample turntable and rotational speed: 5r/min Steel turntable Sample turntable and tensile static (dynamic) state 360 ° rotation and vertical tensile test sample rack

Circulation mode: fan forced circulation mode

Outer box size: long × wide × High 800 × five hundred and eighty × 1300 mm

Total power: 5KW
