臭氧老化试验箱

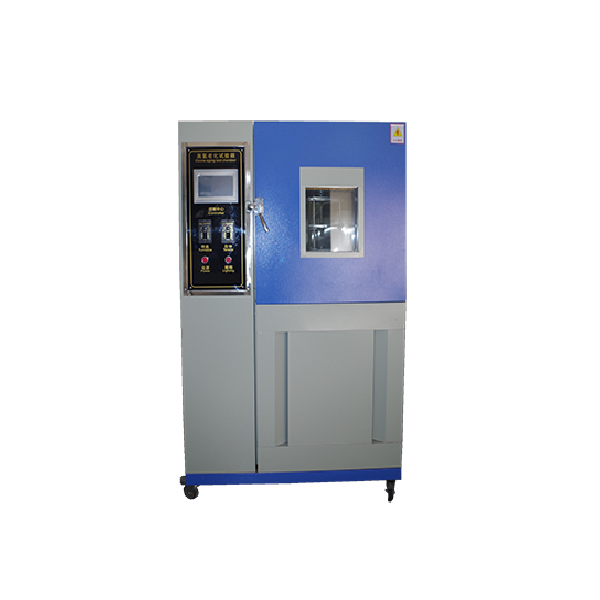

Ozone Aging Chamber

Product Overview

This ozone aging test chamber is used for rubber products such as vulcanized rubber, thermoplastic rubber, cable insulation sheaths, etc. Under static or continuous dynamic stretching deformation, or under intermittent dynamic stretching and alternating static stretching deformation, exposed to sealed and unlit air containing constant ozone concentration and a constant temperature test chamber, the sample is tested at a predetermined time, Evaluate the ozone aging resistance of rubber based on the degree of cracking or other performance changes that occur on the surface of the sample.

Main technical parameters

1. Studio size (D × W × H) : 450 × four hundred and fifty × 550mm

2. Temperature range: 0-60 ℃

3. Temperature uniformity: ≤ 2 ℃

4. Temperature fluctuation: ± 0.5 ℃

5. Temperature deviation: ≤ ± 2 ℃

6. Heating rate: 0.7-1.0 ℃/min

7. Ozone concentration: 20-500PPHM

8. Ozone concentration deviation: ± 10%

9. Sample frame speed: (20-25) mm/S (adjustable)

10. Fixture elongation: 0-100%
