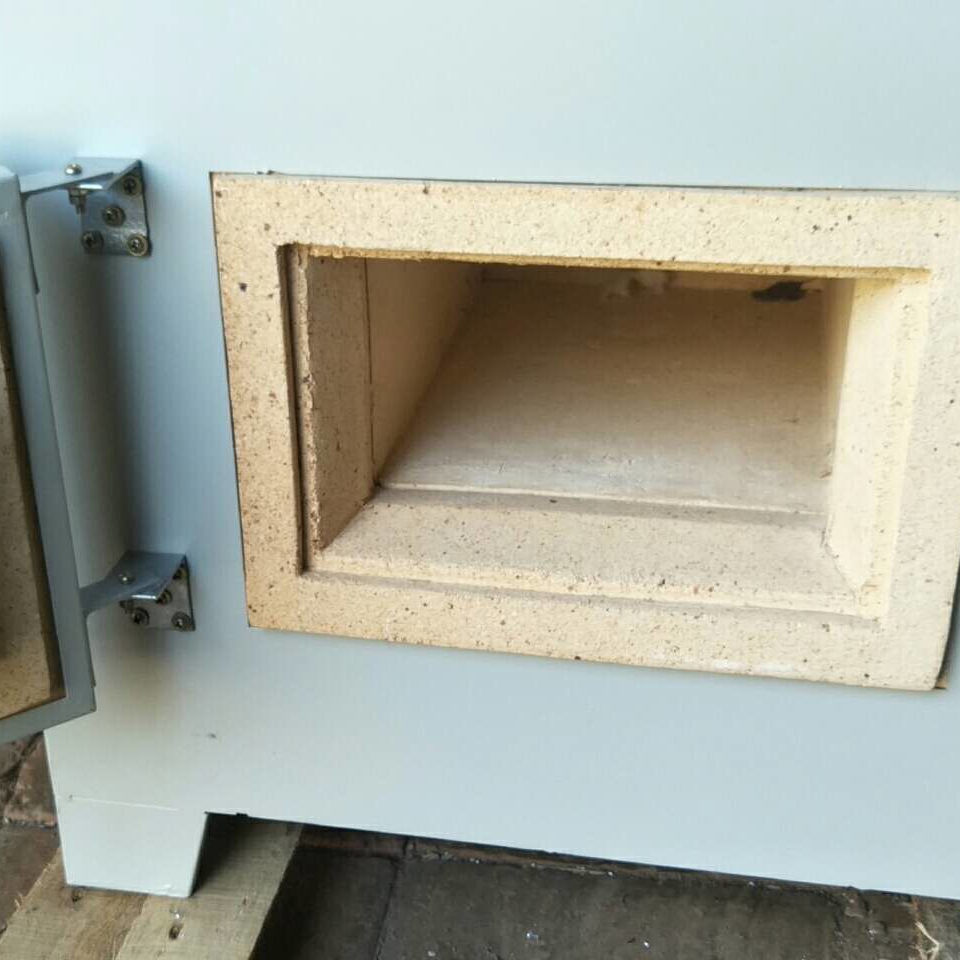

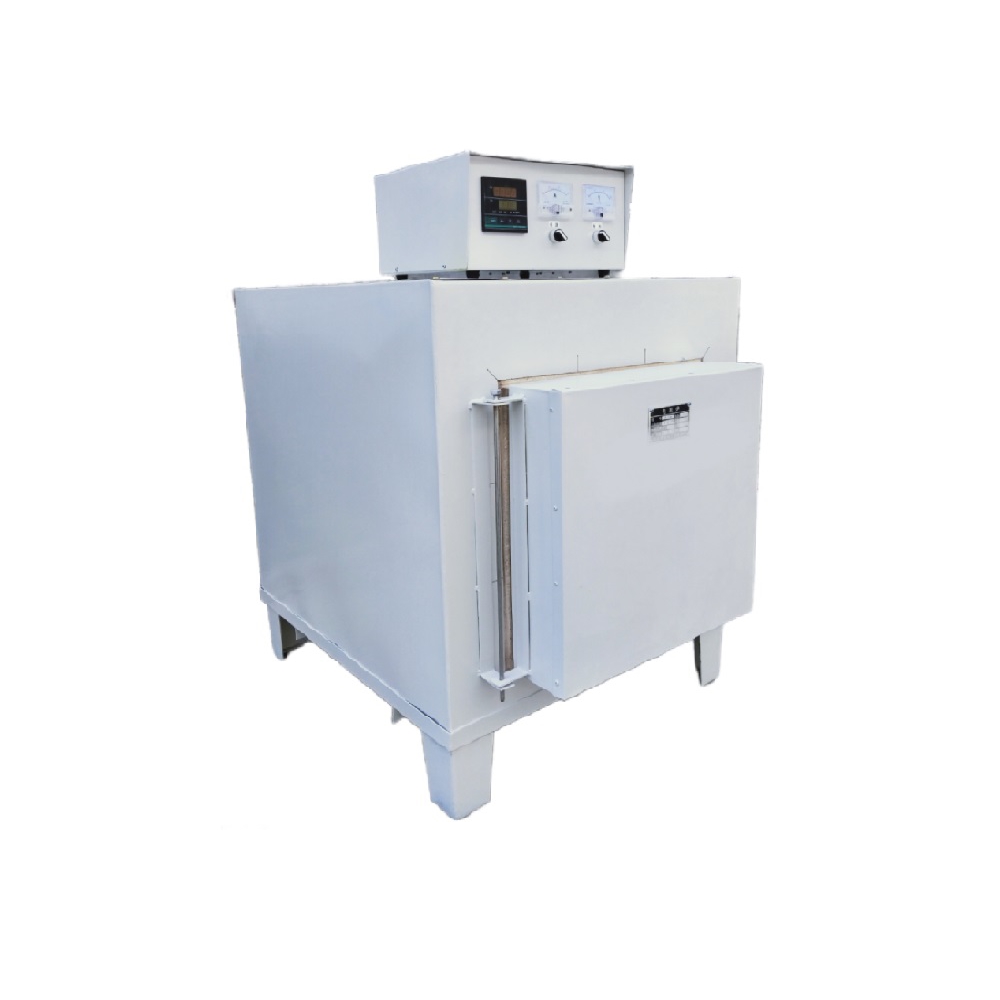

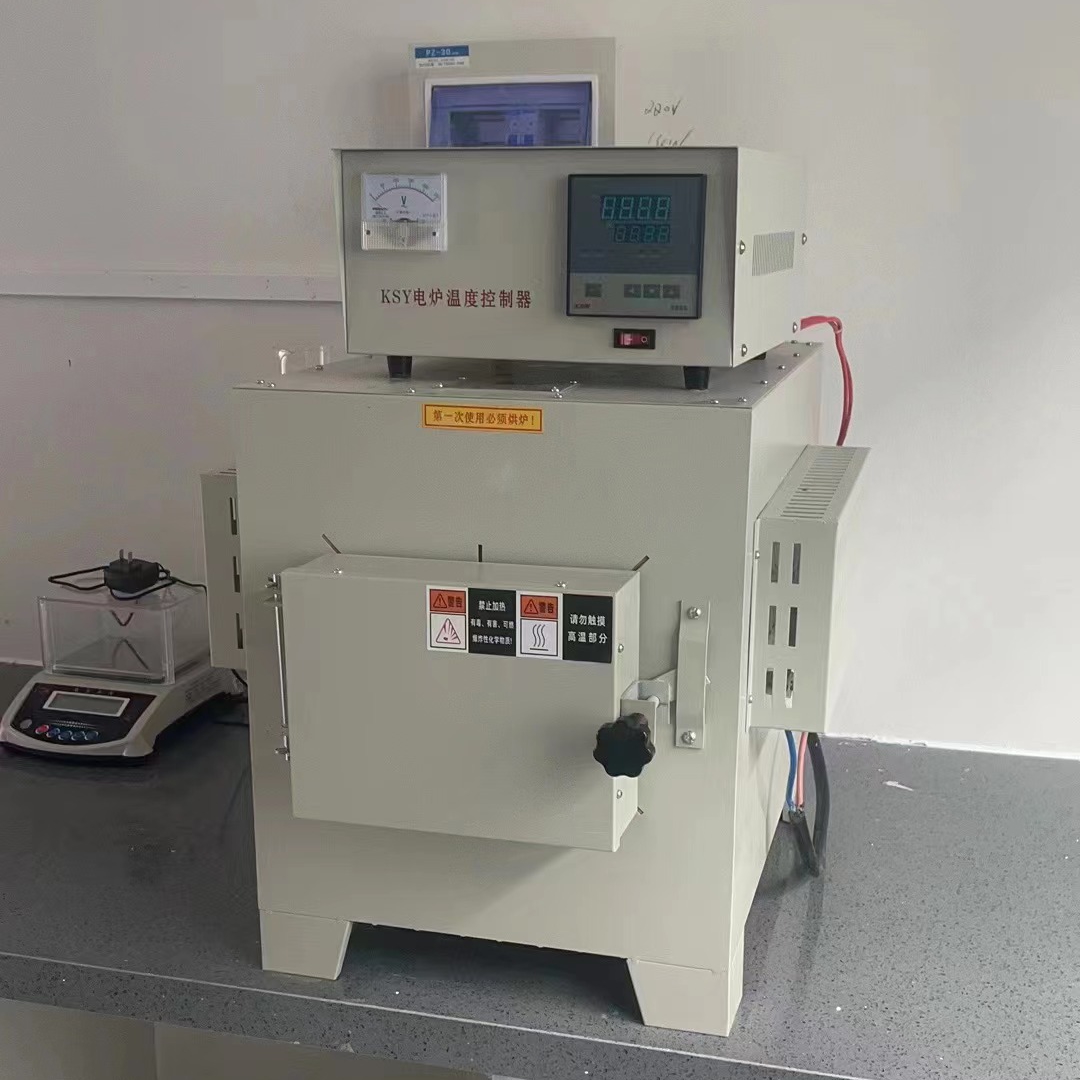

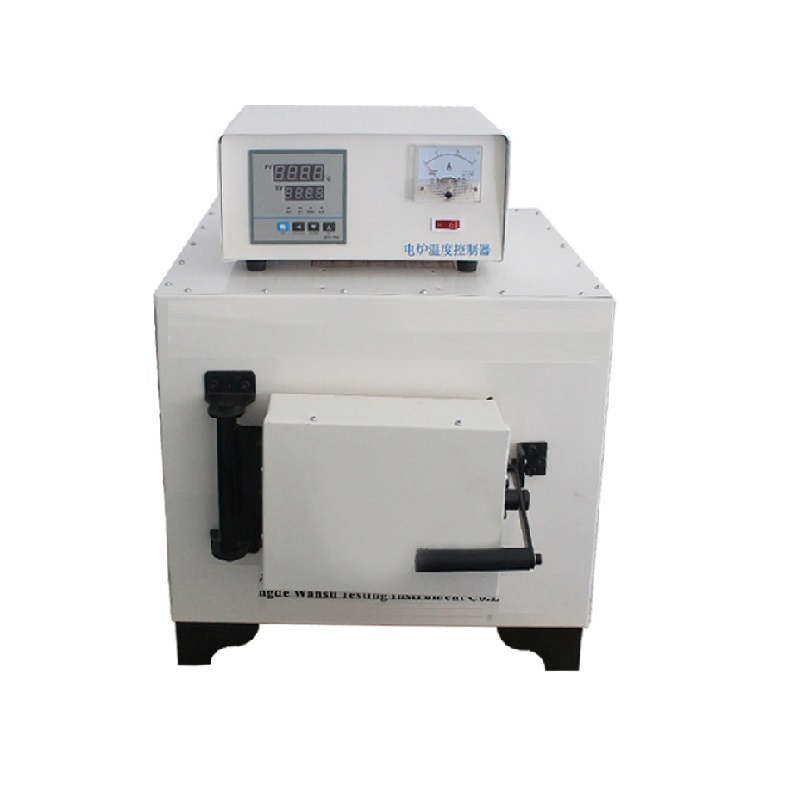

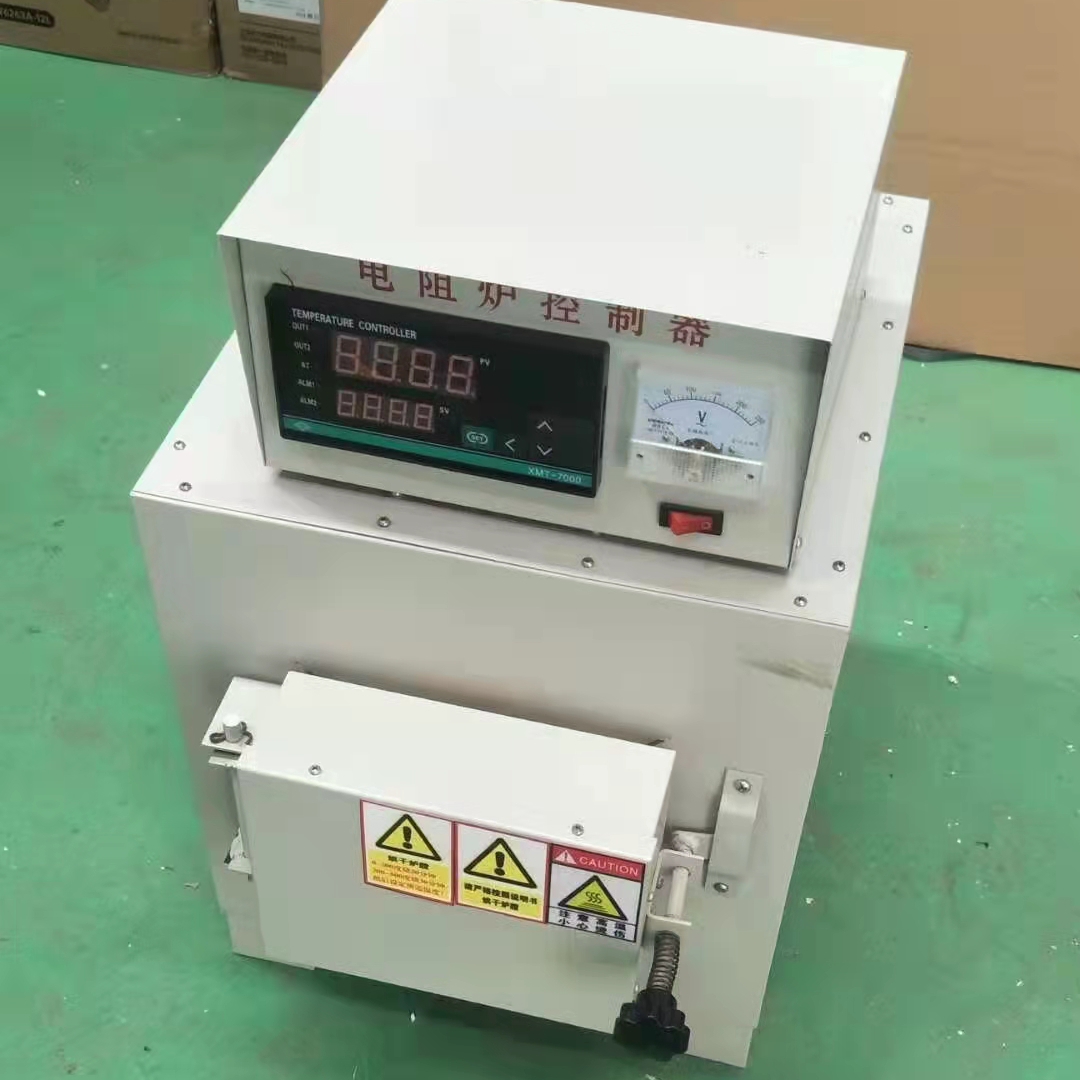

SX-5-12 Box type resistance furnace / Muffle furnace
SX-5-12 箱式电阻炉
| Model | Rated power (kW) | Rated voltage (volts) | Temperature control range (℃) | Allowable temperature of furnace (℃) | Temperature measuring element | heating element | Furnace size （mm） | Packaging size mm: | Weight（kg） | Long term use temperature ℃ | |
| SX-2.5-10 | 2.5 | 220 | Room temperature -1050 | 1050 | Chromium nickel nickel silicon | thermocouple | Iron chromium aluminum alloy wire | 200x120x80 | 660*415*680 | 51 | 950 |
| SX-4-10 | 4 | 220 | Room temperature -1050 | 1050 | Chromium nickel nickel silicon | thermocouple | Iron chromium aluminum alloy wire | 300x200x120 | 780*610*710 | 85 | 950 |
| SX2-8-10A | 8 | 380 | Room temperature -1050 | 1050 | Chromium nickel nickel silicon | thermocouple | Iron chromium aluminum alloy wire | 400x250x160 | 960*660*1050 | 100 | 950 |
| SX2-12-10A | 12 | 380 | Room temperature -1200 | 1050 | Chromium nickel nickel silicon | thermocouple | Iron chromium aluminum alloy wire | 500x300x200 | 1080*720*1100 | 150 | 950 |
