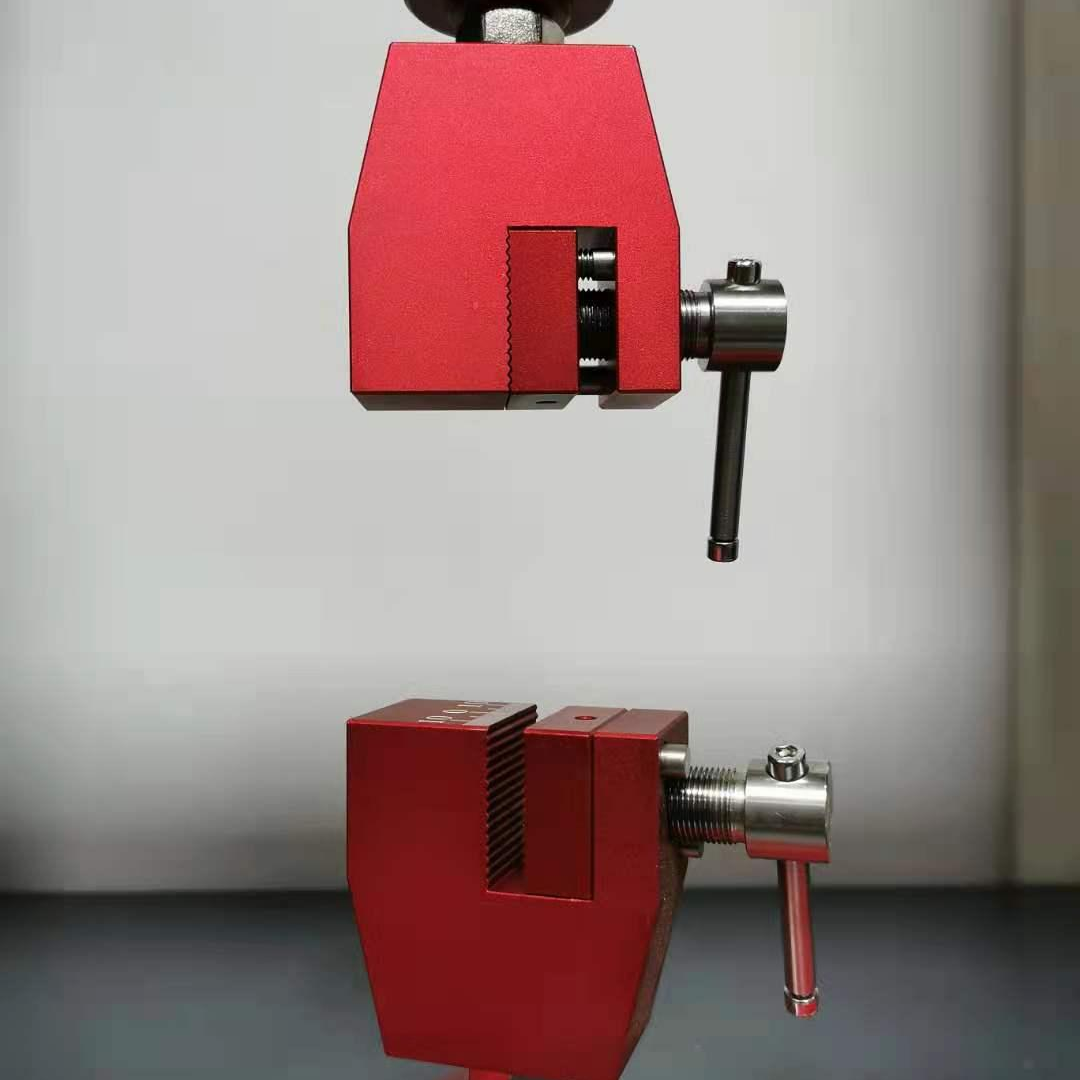

Small ripple aluminum fixture

关注次数:2次

商品类型:Grips of testing machine

上架时间:2025-09-09 10:56:39

description:Optional A or B type connectors:A joint shaft outer diameter 20mm, length 30mm (with locking nut)The inner hole of the B connector is 20mm deep and 30mm deep; the hole diameter of the pin is 10mm, and the distance from the center of the pin hole to the end face of the connector is 14.5mm.When not eq...

hotline:+86 18518980353


Optional A or B type connectors:

A joint shaft outer diameter 20mm, length 30mm (with locking nut)

The inner hole of the B connector is 20mm deep and 30mm deep; the hole diameter of the pin is 10mm, and the distance from the center of the pin hole to the end face of the connector is 14.5mm.

When not equipped with a connector, clamp the specific M12 inner teeth.

Clip specification: Width 30 * Height 30mm

Small ripples, capable of holding samples with a thickness of 6mm

The specific weight of a single clip is 325g
