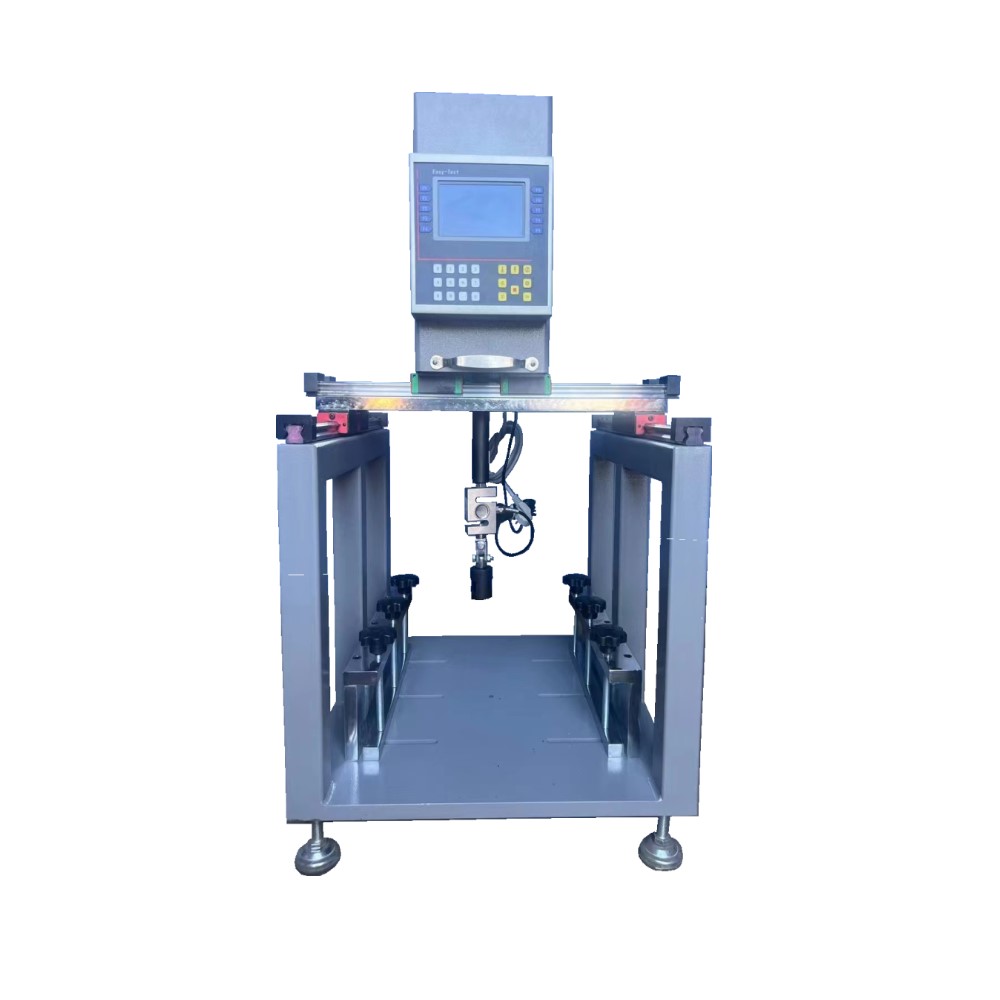

LHBY-10  Mortar bonding strength pull-out testing machine

LHBY-10砂浆粘结强度拉拔试验仪

Scope of application

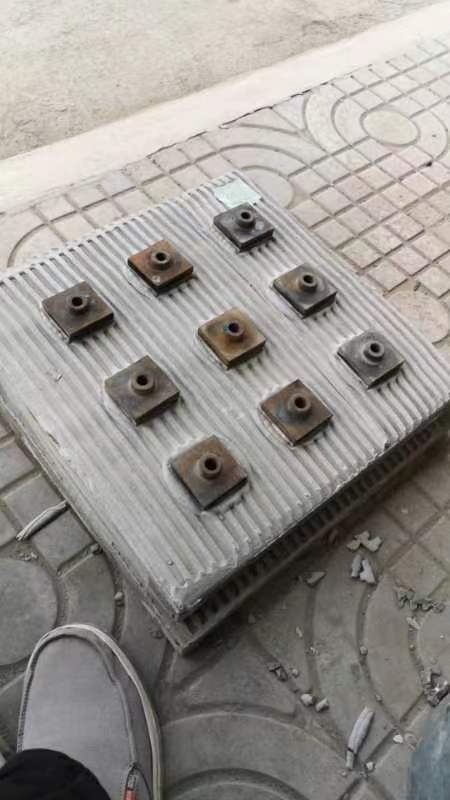

Suitable for testing the bonding strength of insulation materials, dry mixed mortar, ceramic wall and floor tile adhesives, multi-layer building coatings, and putty for building exterior walls, in accordance with the requirements of JC/T547-2005, GB/T9779-2005, JG/T157-2004, and JC/T890-2017 for testing the bonding strength of various building materials. Suitable for production inspection, development and research fields such as factories and mines, construction engineering quality inspection stations, construction companies, product quality inspection institutes, scientific research institutions, etc.

Technical parameters

(1) Maximum test force; 10000N

(2) Effective measurement range of test force; 10N-10000N

(3) Minimum resolution value of test force; 0.1N

(4) Pulling method: constant speed, constant force adjustable

(5) Pulling speed range: 1mm~500mm/min

(6) Test head stretching range: 100mm

(7) Sample size: 400 * 400mm

(8) Maximum thickness of the specimen: 50mm

(9) Type of clamp head: joint type T-shaped clamp head

(10) Power supply 220V

2. Working conditions of the testing machine

(1) Within the range of 10 to 30 degrees Celsius at room temperature.

(2) The relative humidity is less than or equal to 80

(3) In a vibration free environment.

(4) Install correctly on a stable foundation or workbench.

(5) There is no corrosive medium around.

(6) The fluctuation range of the power supply voltage should not exceed ± 10% of the rated voltage.
