WDW-50型微机控制环刚度试验机

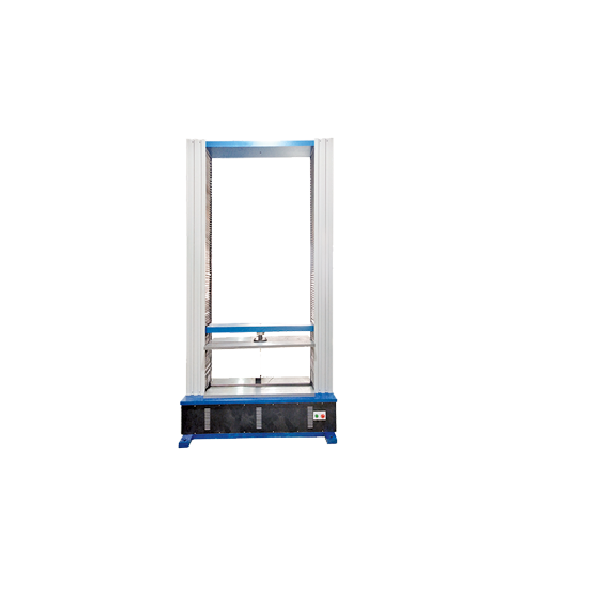

WDW-50 Plastic pipe ring stiffness testing machine

Main purpose and scope of application

WDW-50 ring stiffness testing machine is mainly used for ring stiffness testing of plastic pipes. Simultaneously count the force value extension, set the fixed force value to stop [fixed force extension], set the extension length to stop [fixed extension stress], display the average value and seven test speeds and stepless speed regulation. It can display the maximum force value, material strength, elongation length, and maximum elongation at once. Without the need for operators to record and calculate separately, the reliability of the experiment is greatly improved, making it a handy testing instrument for arbitration between the laboratory and the metrology department.

Main technical indicators:

1. Model: Double arm microcomputer control

2. Maximum test force: 50000N

3. Operation method: Chinese and English menu operation

4. Measurement range: 2% -100% of the maximum test force

5. Accuracy level: Level 1

6. Test force accuracy: better than ± 1% of the indicated value

7. Displacement measurement: resolution of 0.01mm

8. Deformation accuracy: better than ± 1%

9. Speed regulation range: 1mm/min~~500 mm/min

10. Stepless speed regulation: using servo motors and control systems

11. Experimental space adjustment mechanism: servo motor, synchronous belt drive

12. Motor power: 0.55KW

13. Test stroke: 1500mm (customizable according to customer needs)

14. Appearance: In accordance with the national GB/T2611 standard

15. Complete set: meets the standard requirements

16. Test protection function: overload protection

17. Safety protection device: limit switch

18. Power supply: 220V 50Hz

19. Weight: approximately 1300kg

20. Working environment: room temperature~45 ℃, humidity 20%~80%
