混凝土震动台（0.5/0.8/1m）

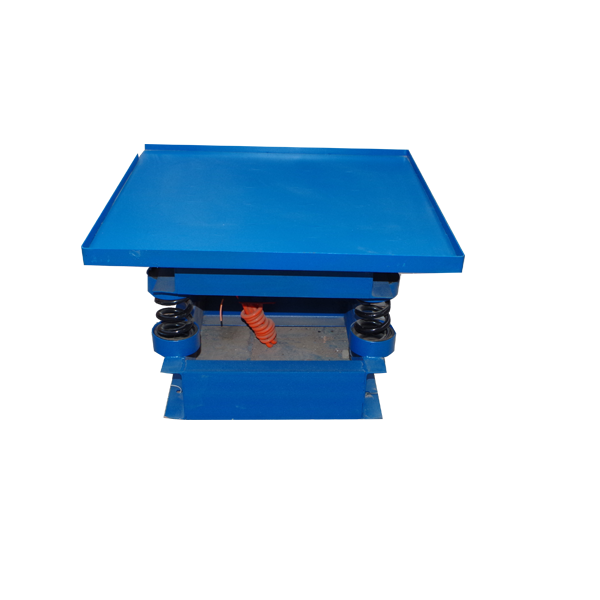

Concrete vibration table
1、 Product Introduction
Our company is a professional manufacturer of vibration tables for concrete. Various specifications of vibration tables are characterized by high production efficiency, good vibration effect, stable quality, compact structure, low noise, and convenient use and maintenance.
The concrete vibration table is used for the on-site production of test specimens in the laboratory and the compaction of various concrete components such as slabs, columns, and beams in the prefabricated component factory.
2、 Structure and Working Principle
The vibration table is mainly composed of components such as a table top, a base frame, and a vibrator spring. The table top and base frame are welded with steel plates and profiles. The vibrator is composed of an electric motor and a pair of identical eccentric wheels, and is installed in the center position of the table top (opposite side) through a pair of hanger couplings, playing a stable and vertical role in the vibration process.
Model | HZJ-A | HZJ-A | HZJ-A | HZJ-A |
Table size(mm) | 500×500 | 800×800 | 1000×1000 | 1000×2000 |
Vibration frequency (times/min) | 2860 | 2860 | 2860 | 2860 |
Amplitude(mm) | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 |
Vibrator power | 0.55 | 1.1 | 1.1 | 3 |
maximum payload(KG ) | 75 | 200 | 250 | 500 |
