Ⅰ Overview

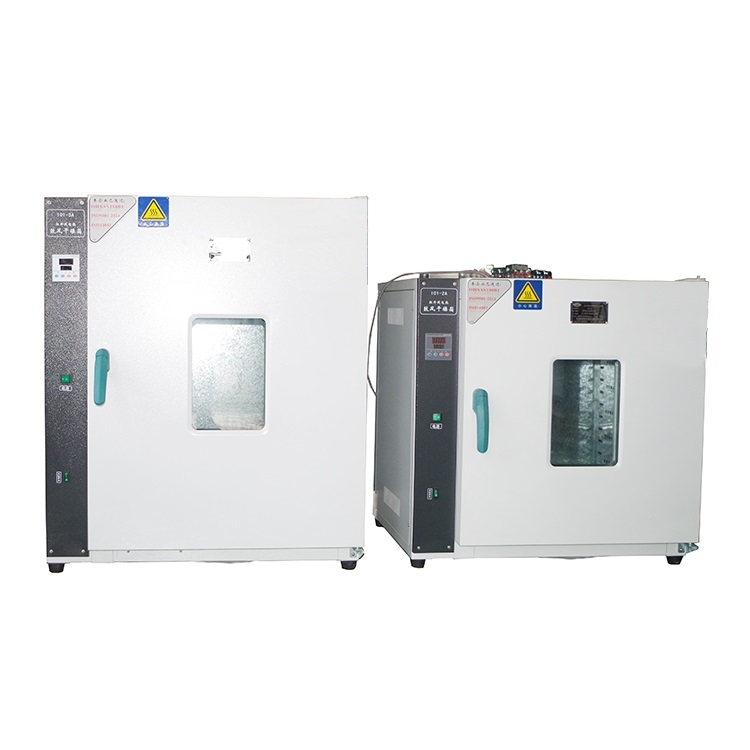

101 series drying oven is a product designed and produced by our company in accordance with national standards. It adopts a high-precision intelligent temperature control meter, a sensor with cold junction compensation, and a heating power thyristor adjustment, which has the characteristics of stable temperature and simple operation.

This box is specially designed for industrial production and scientific research units to provide high-temperature use conditions, and is mainly suitable for drying samples and other materials.

Ⅱ Structure description

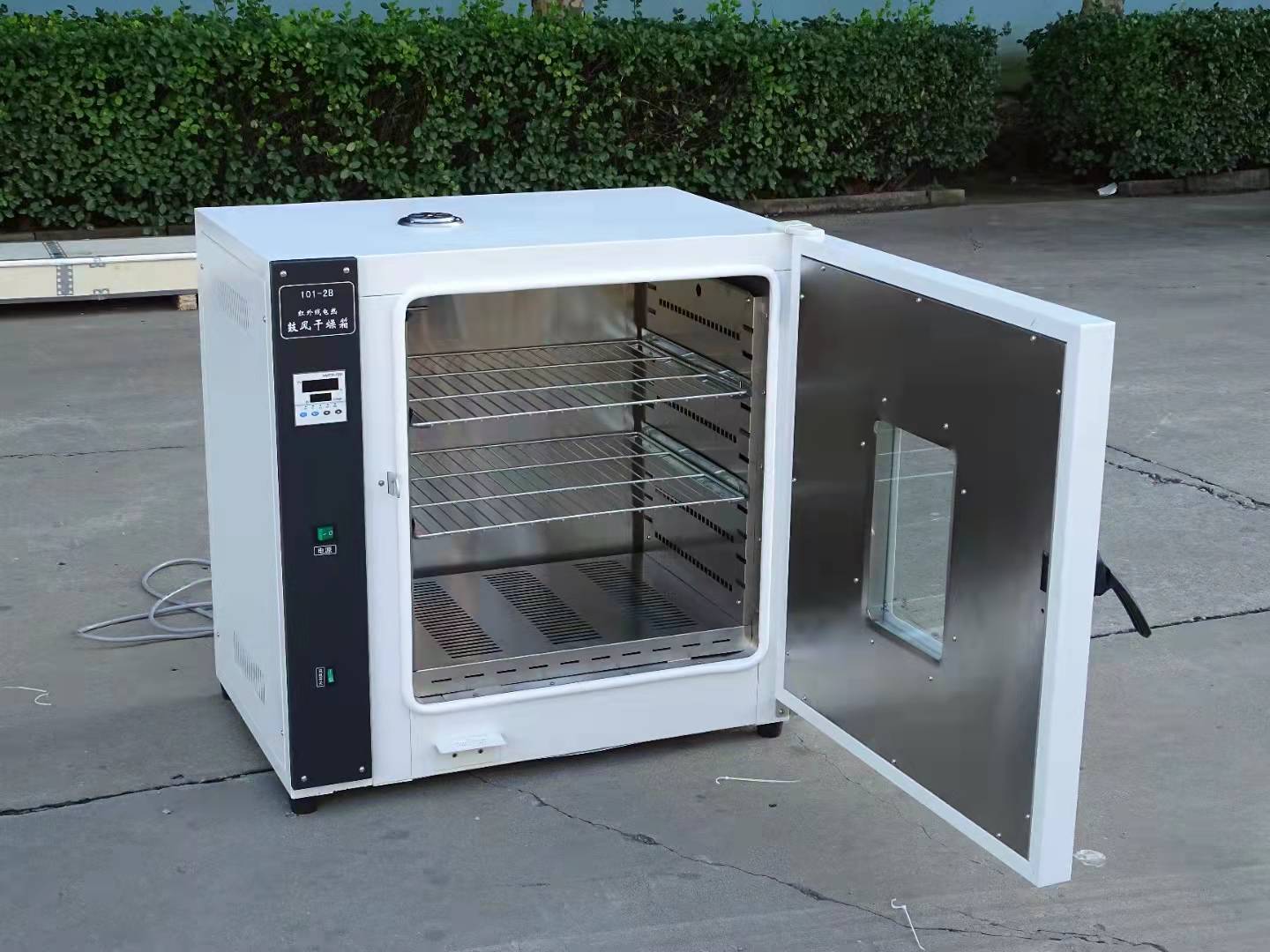

The box body is made of cold-rolled steel plate as the outer box body, and the inner box body is made of galvanized sheet or stainless steel. The heater adopts far-infrared heating radiator and internal circulation blowing function to make the air convection more balanced.

Technical parameter:

1. Standard drying temperature：105℃

2. The fluctuation value of temperature control accuracy：≤2℃

3. Extreme working temperature: 250℃

4. Power supply voltage: AC220V/50HZ

5. Heating power: 3.0KW

6. Studio size: 450*550*550mm

7. Dimensions: 810*650*810mm
