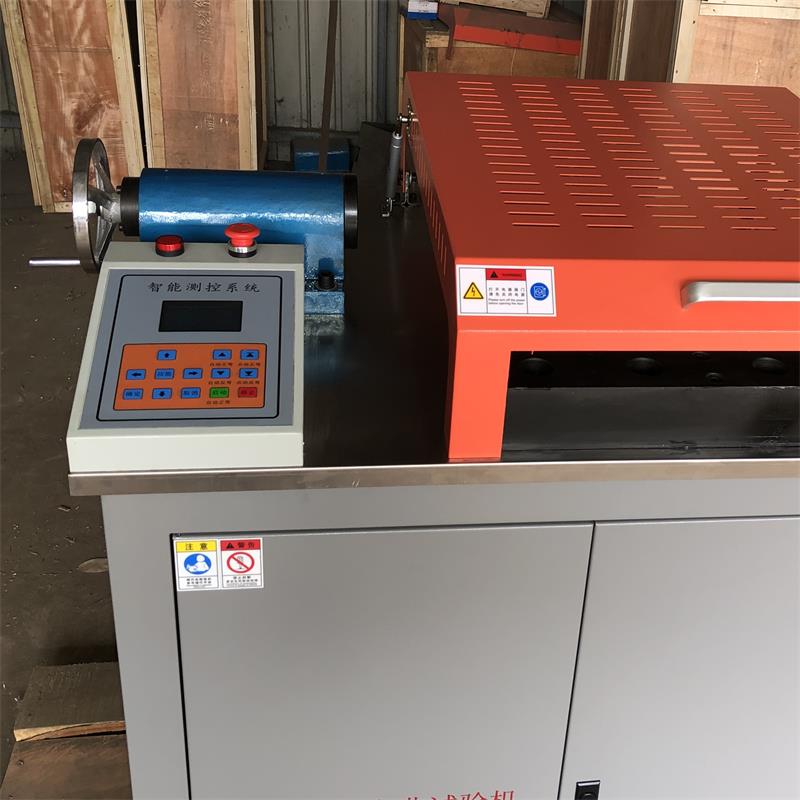

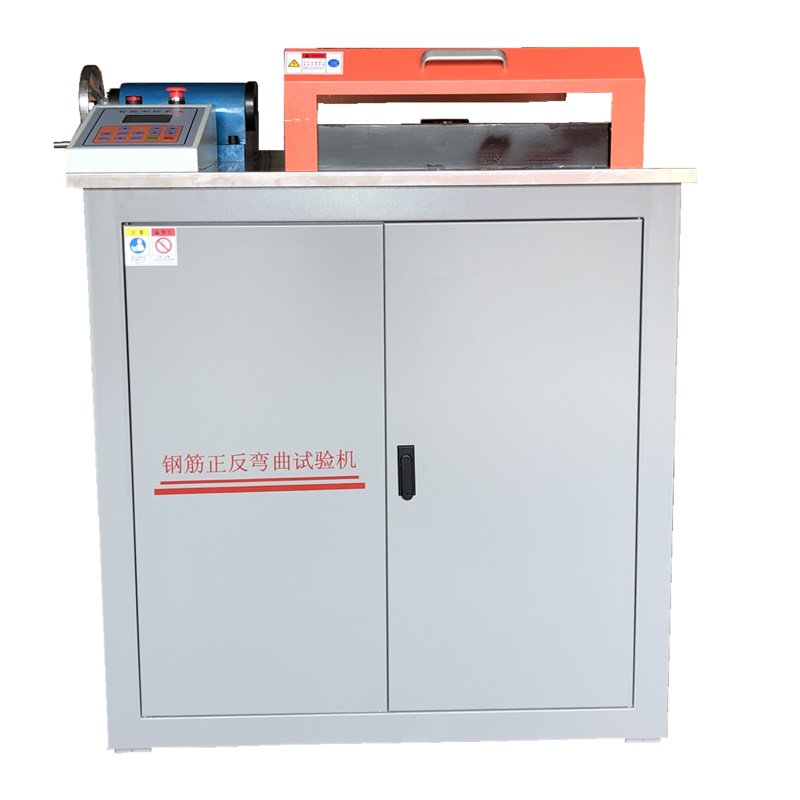

GW-40F型钢筋正反弯曲试验机

GW-40F Reinforcement positive and negative bending testing machine

The steel bar bending testing machine is the test equipment for the plane positive and reverse bending test of steel bar. The main technical parameters and indicators of the equipment meet the requirements of YB/T5126-2003 "Test Method for Bending and Reverse Bending of Reinforced Concrete" (instead of GB5029-85 "Test Method for Plane Reverse Bending of Reinforced concrete") and GB/T1499.2-2018 (instead of GB/T1499-1998).

I. Performance characteristics:

1. steel bar bending testing machine is a special equipment for the plane bending test of steel bar. The main technical parameters and indicators of the equipment meet the requirements of YB/T5126-93, GB1449-2018, GB5029-85 "Test Method for Plane Reverse Bending of Steel Bars". The product is widely used in steel mills and construction units to test the positive and negative bending properties of threaded steel bars.

2. the new steel bending test Yang older testing machine, in the replacement of wearing parts, prolong the whole machine life and other aspects have been greatly improved, is currently more perfect bending testing machine.

Ⅱ.Technical Parameters

1. Diameter range of bending steel bars: ∮6-∮40

2. Reinforcement forward bending Angle: 0º-180º arbitrary setting

3. Steel bar reverse bending Angle: 0º-25º arbitrary setting

4. Working disk speed: ≤3.7r/min

5. Roller center distance: 165mm

6. Working disk diameter: ∮580mm

7. Motor power: 1.5KW

8. Random standard: a set of bending core

9. Machine dimensions: 970×760×960mm

10. The weight of the machine is about 700kg
