Overview

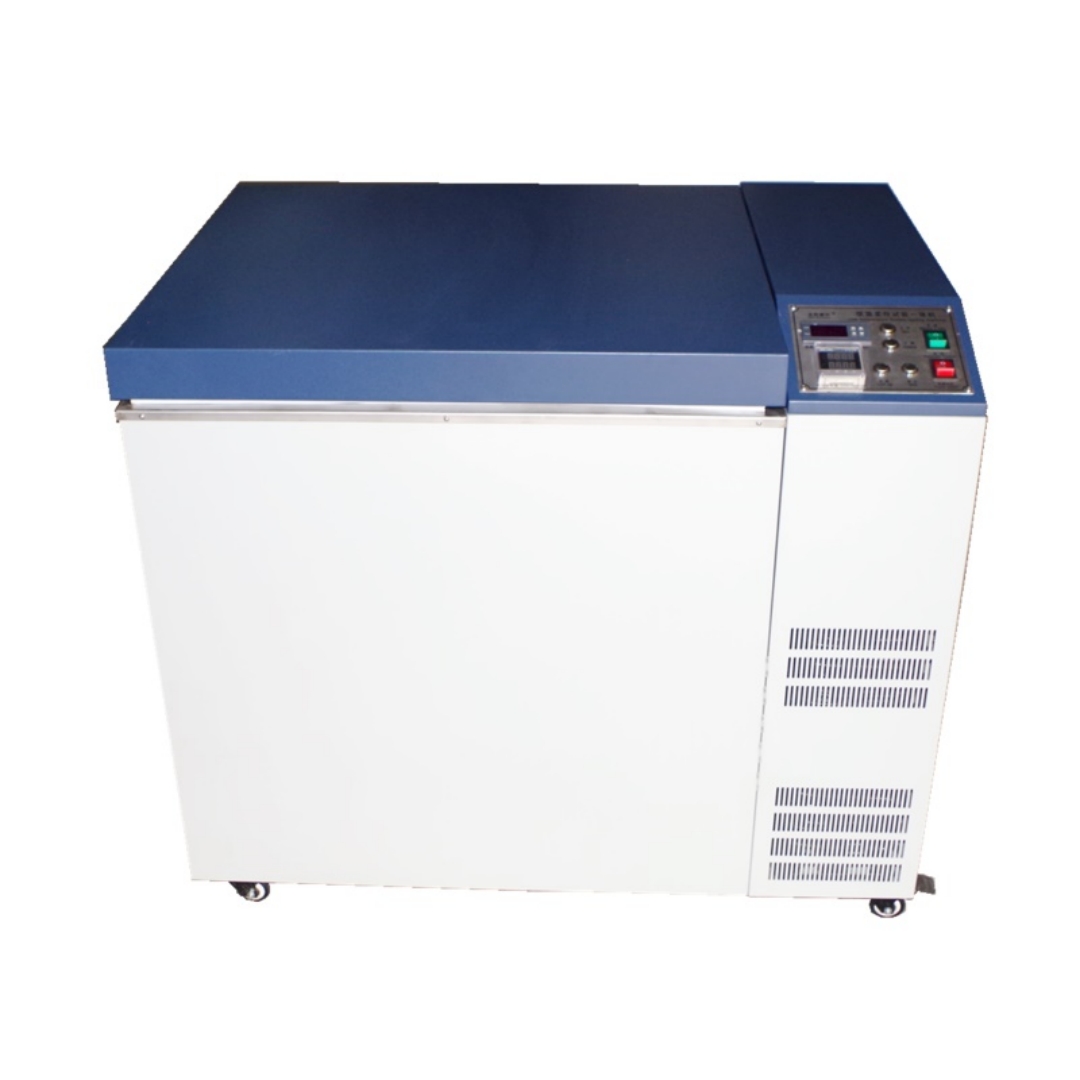

The fully automatic low-temperature flexibility tester is developed for the low-temperature flexibility testing of waterproofing membranes. It comes with built-in refrigeration, fast cooling speed, simple structure, and easy operation. The inner tank and flexibility tester are made of 304 stainless steel, which is corrosion-resistant and rust free. It complies with the national standard GB/T328.14-2007 "Test Methods for Building Waterproofing Membrane Part 14: Low Temperature Flexibility of Asphalt Waterproofing Membrane", which clearly stipulates that low-temperature flexibility testing must be carried out using mechanical automatic testing to avoid human factors. The low-temperature flexibility tester is a necessary equipment for quality inspection institutions and waterproofing membrane production enterprises to test product quality.

Technical Parameter

Power supply: 220V

Input power: 750W

Test speed: 360 ± 40mm/min

Number of test pieces: 10 pieces

Minimum temperature: -40 ℃

Test piece size: 150 X 25 m m

Time setting: 0-9999 minutes (adjustable)

Bending axis size: Φ 20, Φ 30, Φ 50

Temperature accuracy: ± 0.5 ℃

Dimensions: 93cmX62cmX82cm

Internal dimensions: 50cmX40cmX36cm

Weight: 110KG

Operating environment temperature: 0-26 ℃
