Usage Overview:

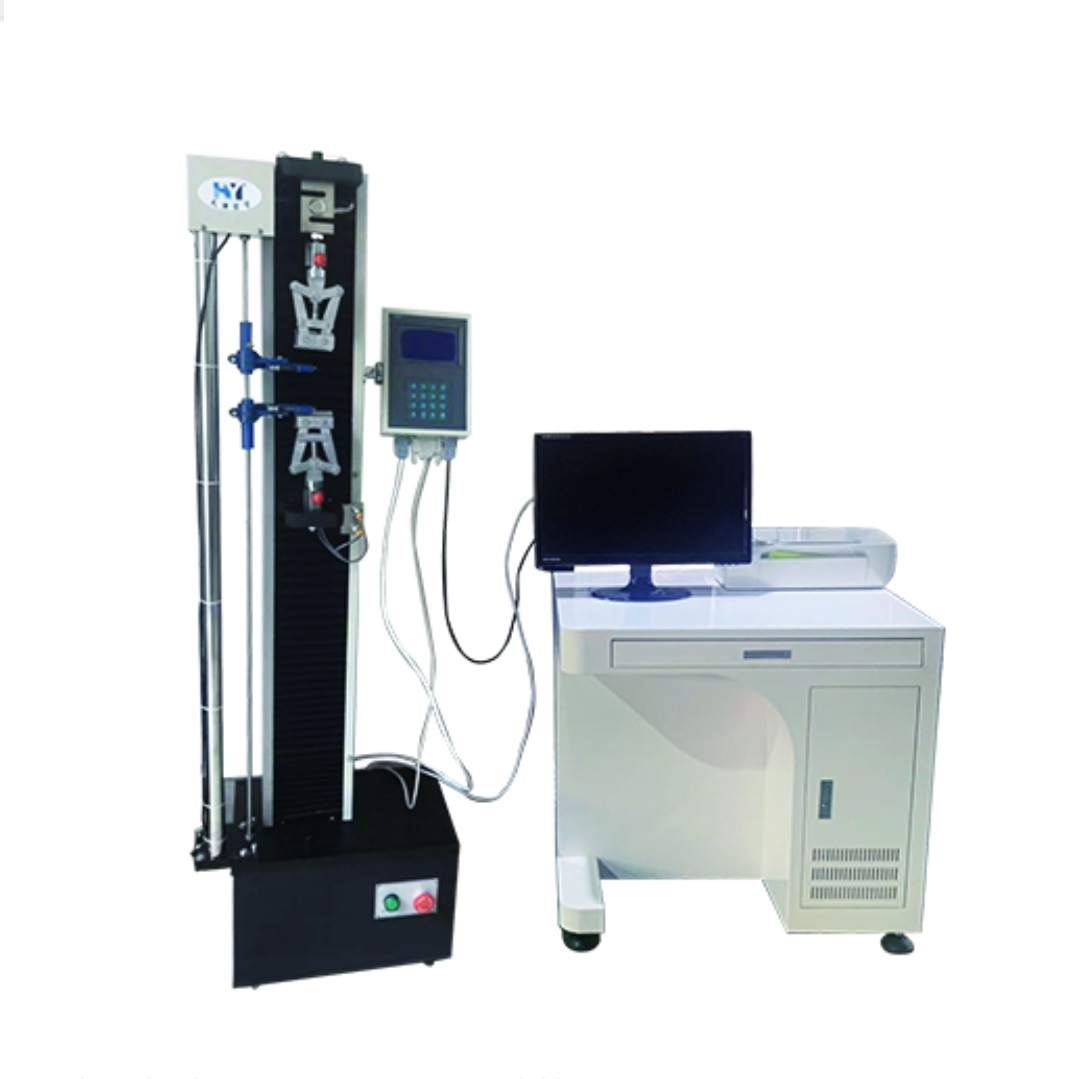

The WDL series microcontrolled tensile testing machine is mainly used for tensile testing of new building materials (including new waterproof rolls, insulation dry powder mortar, waterproof coatings, waterproof sealing materials, etc.), plastic woven bags, rubber materials, and other non-metallic materials. It can also be used for tensile performance testing of other non-metallic materials. The specimen within the gauge length can be stretched at a set speed to measure its force and elongation at break. The testing machine measurement and control system is designed specifically for microcomputer electronic tensile testing machines. Can conduct tensile, shear, tear, and peel tests. Using a PC and interface board for data collection, storage, processing, and printing of experimental results. Can calculate parameters such as maximum force, yield force, average peel force, maximum deformation, yield point, elastic modulus, etc; Capable of curve processing, multi-sensor support, graphical and graphical interface, flexible data processing, and MS-ACCESS 2003 database support, making the system more powerful.

Technical parameters:

WDL-500 type 500N

WDL-1000 type 1000N

WDL-2000 type 2000N

WDL-5000 type 5000N
