i   Applicable scope

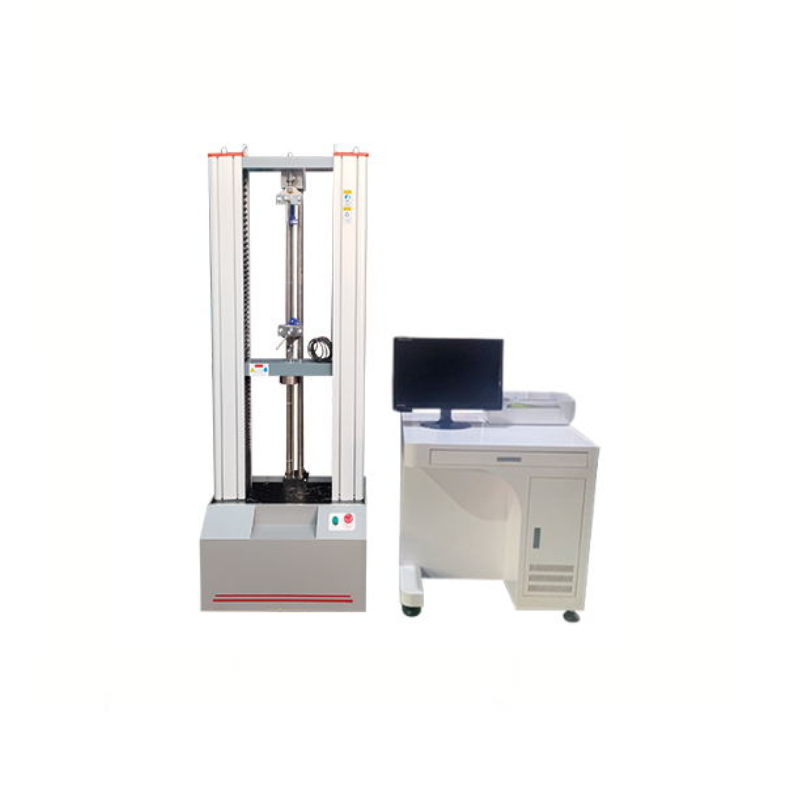

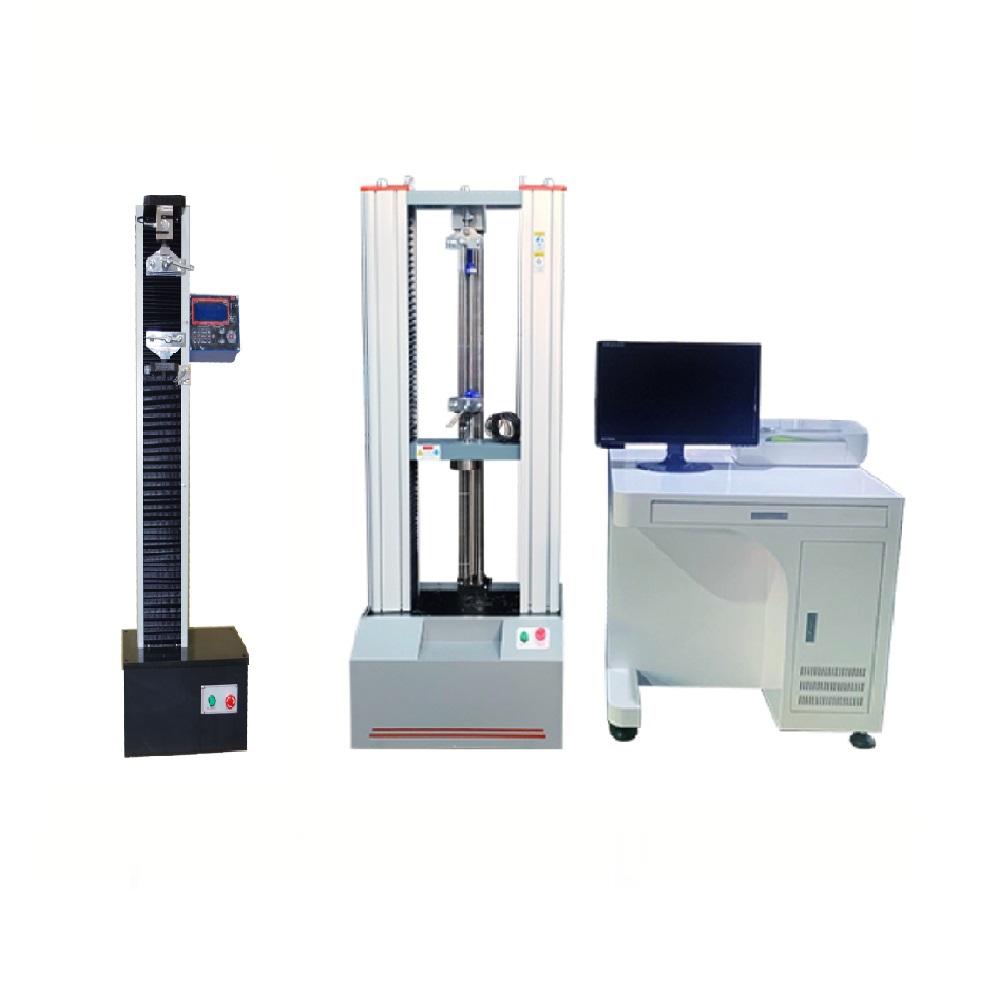

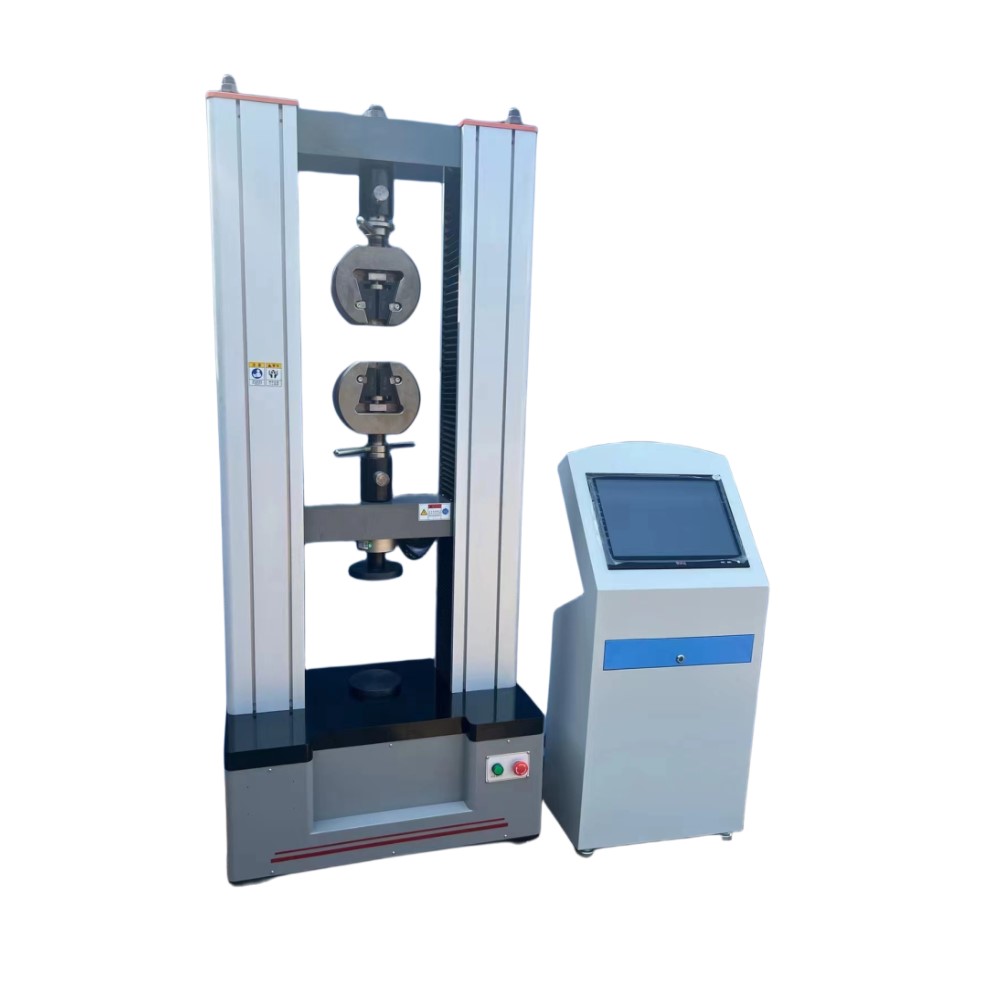

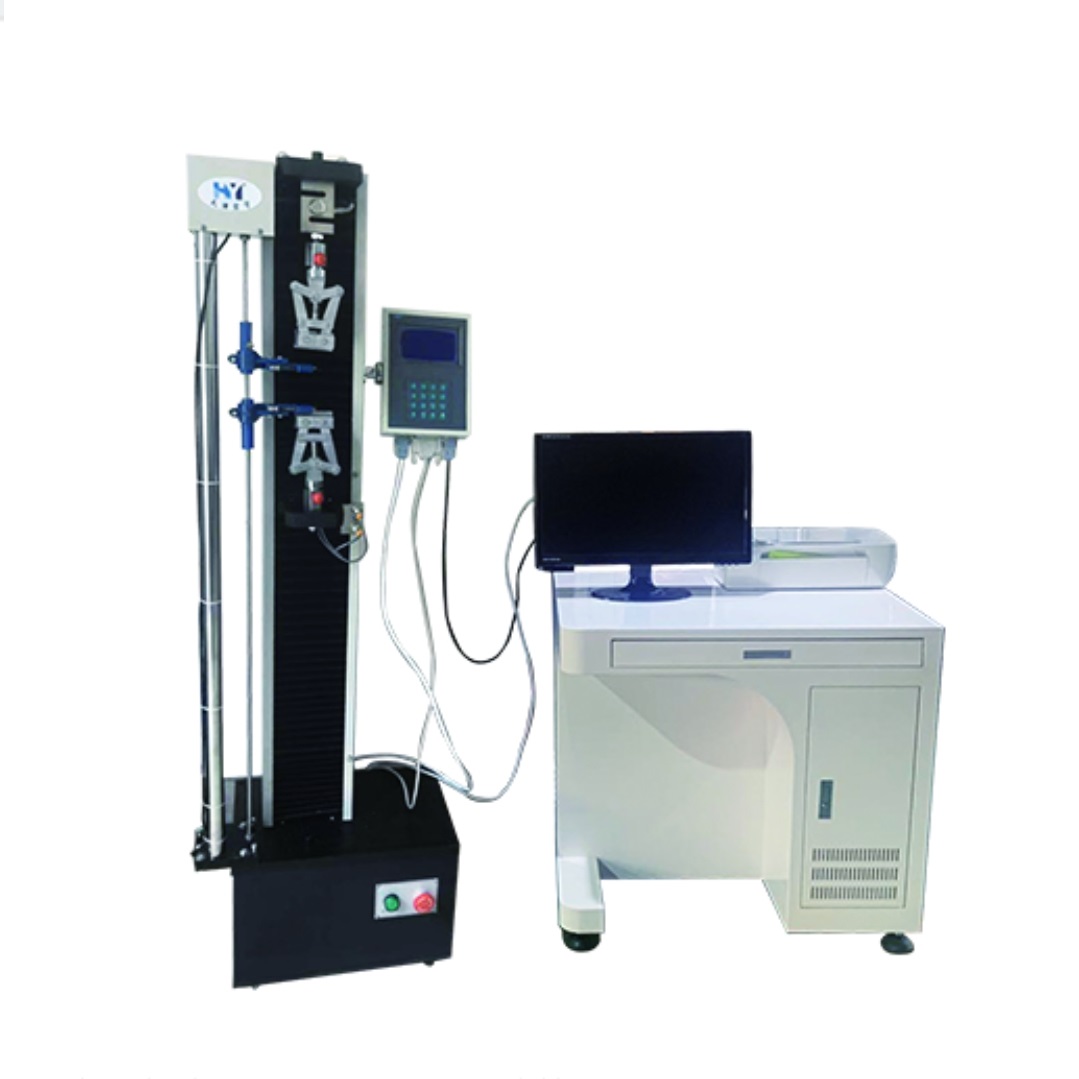

The microcomputer controlled electronic universal testing machine is mainly used for testing the tensile, compression, bending, shearing, peeling, bending, bursting and puncture properties of new waterproof rolls, waterproof coatings, rubber materials, geotextiles, insulation boards, insulation mortar, pipes or other materials. It can also be used for testing the tensile properties of small metal materials. Simultaneously count the force value extension, set the fixed force value to stop [fixed force extension], set the extension length to stop [fixed extension stress], display the average value and seven test speeds and stepless speed regulation. It can display and print the maximum force value, material strength, tensile length, and maximum elongation at once. Without the need for operators to record and calculate separately, the reliability of the experiment is greatly improved, making it a handy testing instrument for arbitration between the laboratory and the metrology department.

i i   Technical parameters

(1) Maximum test force: 10KN

(2) Effective measurement range of test force: 0-10KN

(3) Minimum resolution value of test force: 0.1N

(4) Maximum distance between stretching fixtures: 800mm

(5) Test speed: 0.1-500mm

(6) Power supply: 220V

(7) Motor power: 750W

(8) Safety protection device: limit switch
