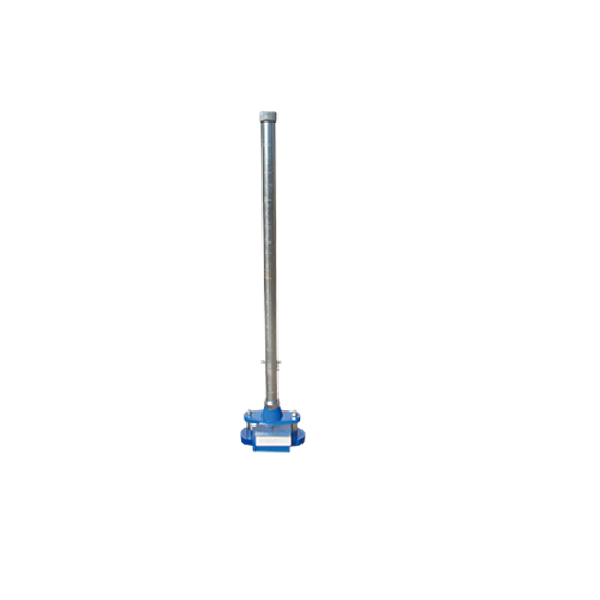

Waterproof membrane perforation resistance tester

防水卷材抗穿孔性检测仪。

This product is designed according to the GB12952-2011 standard and uses a heavy hammer to impact PVC waterproof rolls from a height to determine their resistance to perforation.

Main technical indicators

1. The scale length of the metal conduit is 1000mm, with a graduation value of 10mm

2. Heavy hammer weight: 1000g ± 1g

3. The steel ball at the ram end is: φ 12.7mm

4. Cushion block: 150mmX150mmX50mm foam polystyrene with density of 25Kg/cm3

5. Base plate: 150mm x 150mm x 5mm aluminum plate

6. Net weight: 11Kg
