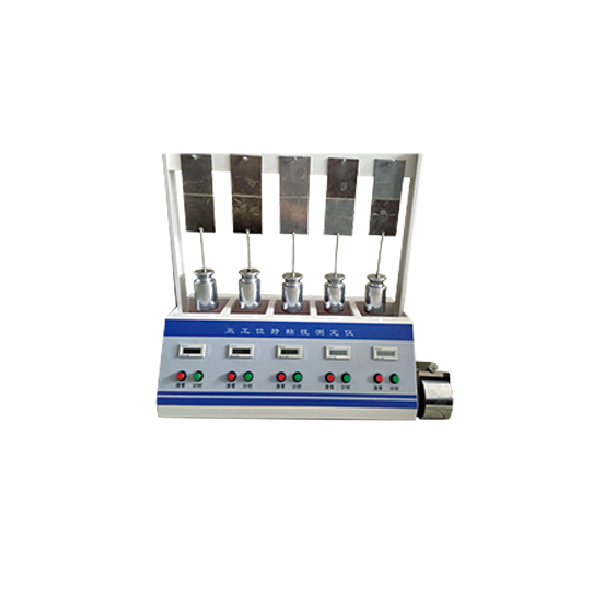

Product Introduction:

The adhesion tester, also known as the adhesion tester, is mainly suitable for conducting adhesion testing on products such as pressure sensitive adhesive tapes, medical patches, self-adhesive labels, protective films, etc. Its working principle: hang the test plate with the sample vertically on the test frame, and hang a specified weight weight at the lower end. The displacement of the sample after a certain period of time, or the time when the sample completely detaches, is used to characterize the ability of the adhesive tape to resist pulling off. Suitable for holding test of pressure-sensitive adhesive tapes, medical adhesive stickers, protective films, ointments, cataplasms, and other products.

Technical parameters:

▲ Standard pressure roller: 2000g± 50g

▲ Weight: 1000g± 10g (including weight of loading plate)

▲ Test plate: 120mm (L)× 60mm (W)× 1.5mm (D)

▲ Timing range: 0-100h (standard configuration) 0-10000h (optional)

▲ Number of workstations: 3 pieces

▲ Overall dimensions: 360mm (L)× 240mm (W)× 420mm (H)

▲ Power supply: AC220V 50Hz

▲ Net weight: 20Kg
