Overview

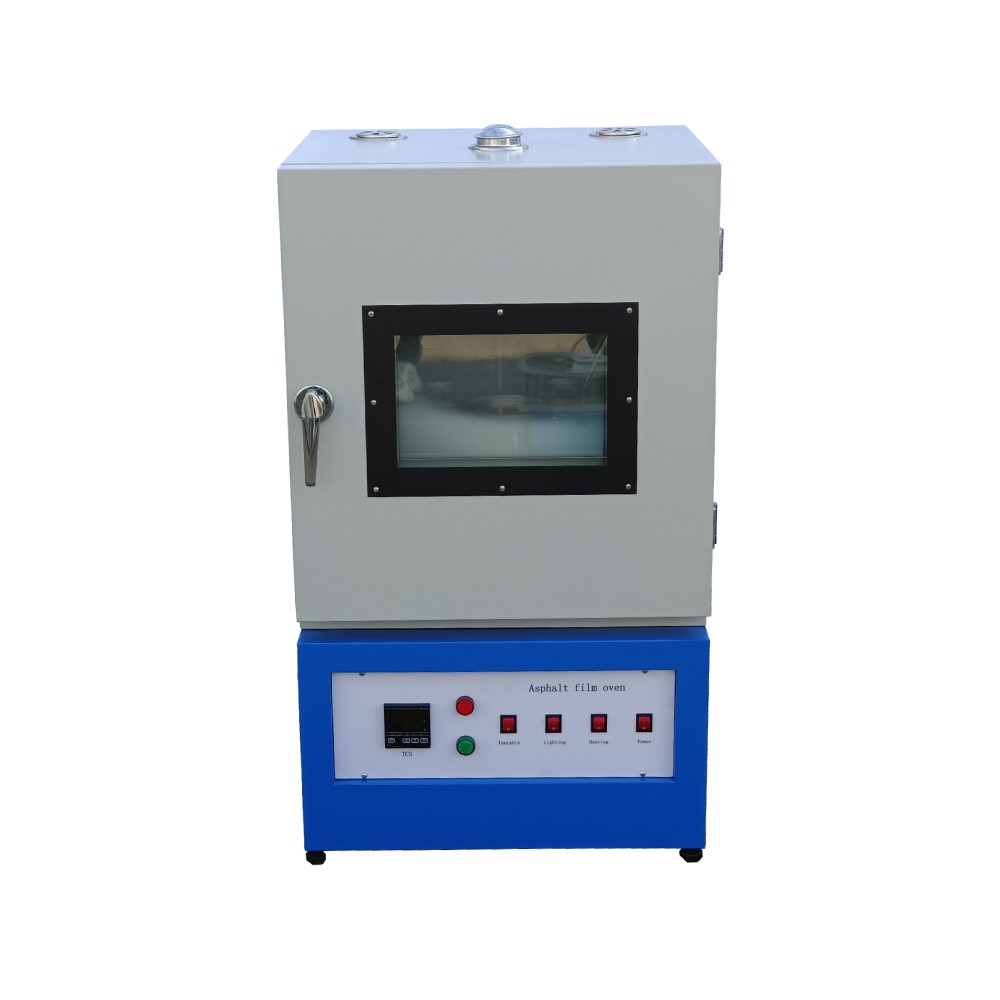

The 82 type asphalt rotary film oven is mainly used to measure the quality changes of road petroleum asphalt and polymer modified asphalt film after heating, and to determine the changes in properties such as penetration, elongation, softening point, viscosity, etc. of the residue after film heating as needed, in order to evaluate the aging resistance of asphalt.

Main technical parameters

v Heating power: 3KW

v Working temperature: 163 ± 1 ℃

v Voltage: 220V 50HZ

v Temperature range: 50-200 ℃

v Temperature fluctuation: ± 0.5 ℃

v Disk rack speed: 5.5 revolutions per minute

v Disc diameter: 400mm

v The maximum working temperature of the product is 250 ℃, with a temperature control accuracy of 1 ℃.

v Usage environment: Temperature 10-40 ℃, relative humidity ≤ 85%, no vibration or corrosiveness, no presence of flammable gases.
